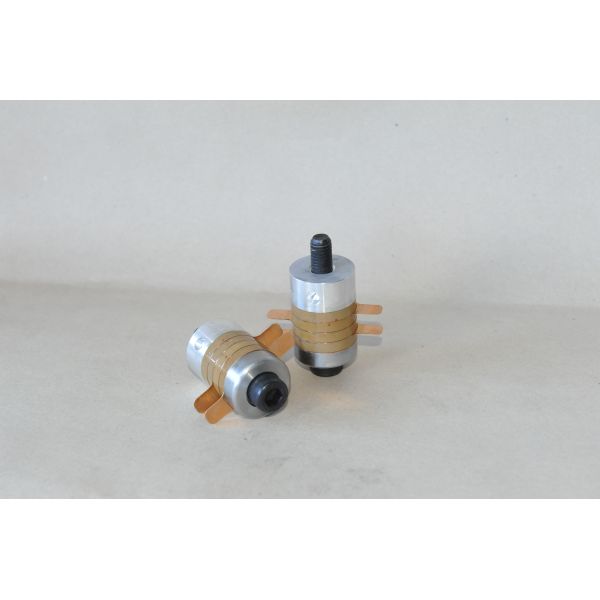

Bone Cutting Ultrasonic Welding Transducers 6.2 - 6.9 nf Capacitance

Bone Cutting Ultrasonic Welding Transducers 6.2 - 6.9 nf Capacitance

Description:

Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 µm in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food.

The ultrasonic cutter is composed of a "transducer" that generates vibration and an "oscillator" that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance. In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to ring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.

Specifications:

Applications:

Our transducer can applied in the following ultrasonic machines:

Competitive Advantage:

1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Bone Cutting Ultrasonic Welding Transducers 6.2 - 6.9 nf Capacitance

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
