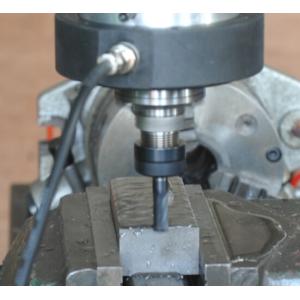

Rotary Glass Ultrasonic Electrical Drilling Machine With Handle / Foot Switch

Rotary Glass Ultrasonic Electrical Drilling Machine With Handle / Foot Switch

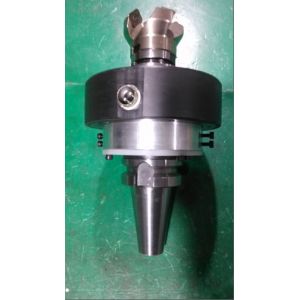

The rotary ultrasonic drilling setup consists of an ultrasonic spindle kit, a constant pressure feed system and a coolant system.

Principle:

The ultrasonic spindle system comprises of an ultrasonic spindle, a power supply, and a motor speed controller. The power supply converts 60 Hz electrical supply to high frequency (20 kHz) AC output. This is fed to the piezoelectric transducer located in the ultrasonic spindle.
The ultrasonic transducer converts electrical input into mechanical vibrations. The motor attached atop the ultrasonic spindle supplies the rotational motion of the tool and different speeds can be obtained by adjusting the motor speed controller.

Functions:

1. The tool with ultrasonic vibration wear rate was lower than that for Tool without vibration.
2. ultrasonic vibration assisted drilling of glass, the tool wear without vibration was approximately twice of that with vibration.
3. The cutting force was significantly reduced (about 20%) with rotary ultrasonic machining compared to diamond grinding.
4. The roughness value was reduced by 85% with ultrasonic vibration, a significant roughness improvement. And found that the roughness could be either increased or decrease, depending on the vibration amplitude.

Applications:

Improvements led to the development of a machine comprising a rotating ultrasonic transducer. The rotating transducer head made it possible to precisely machine stationary workpieces to close tolerances. With different shaped tools, the range of operations could be extended to end milling, tee slotting, dovetail cutting, screw threading, and internal and external grinding.

Rotary ultrasonic drilling machine , ultrasonic vibration assisted drilling of glass

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
