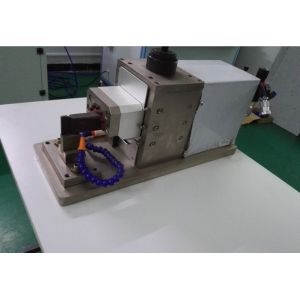

Digital Mini Ultrasonic Metal Welding Equipment CPU Controlled 500W
- 3000W
Description:
Ultrasonic metal welding offers the automotive, appliance, and
electronics industries substantial labor savings as well as the
capability to verify the quality of every bond. First developed for
joining plastic parts, ultrasonic welding has been increasingly
used for splicing and terminating wire. It has become the method of
choice among manufacturers of electrical wiring harnesses, for
example, where it is proving to be a cost-effective alternative to
resistance welding and clip-and-solder methods.
HS-MW series ultrasonic spot welding machine is the high frequency
vibration between the work piece surface, until the contact surface
heating and welding together. As copper, silver, nickel chromium
canwelding to dot or strip, which can be widely applied to the
silicon chip fuses, quick fuse melts melting, electrical wire
terminals, lithium ion, nickel metal hydride, nickel cadmium
battery pole piece such as dot, strip welding.
Specification:
Model | HSP12B-MB |
Power | 500-3000W |
Generator | 220V/50HZ |
Frequency | 24KHz--40KHz |
Control | CPU control,automatic scanning/tracking |
Welding time | 0.05-1S |
Welding arrange | Copper 0.15-2+1.15-2mm |
| Aluminum 0.2-3+0.2-m |
| Nickel 0.1-1.2+0.1-1.2mm |
Air | 0.6Mpa |
Applied in lithium ion Battery Tab Welding Machine, anode with tab, tab and aluminum plate, polymer battery
multilayer copper foil, aluminum foil and ear welding, aluminum and
nickel are connected.
Suit for lithium ion battery at the bottom of the aluminum and
aluminum welding nickel composite belt, with a special fixture.
There are many materials joining requirements in battery
manufacture. Depending on the size, type, and capacity, these
include both internal and tab-to-terminal connections, can and fill
plug sealing, and external connections. Several joining options can
be considered including ultrasonic , resistance, and laser welding.
Ultrasonic welding is most often used to join the internal
electrode battery materials which are typically constructed of thin
foils of copper and aluminum. The remaining joins - including
connections inside the can, and external terminal tab connections -
are suited to both resistance and laser welding. The decision to
use one technology or the other is determined both by the type of
weld required and production requirements. Laser welding is the
joining technology of choice for can and plug applications (seam
sealing).
Advantage:
1. Our machine controlled by microcomputer, electronic tuning,
frequency automatic tracking, power continuously adjustable.
2. Our machine compared with other manufacturers, stable, welding
firm, good consistency and weldment firm, high strength, beautiful
appearance, environmental protection, etc.
3. The component parts of the machines adopt imported accessories,

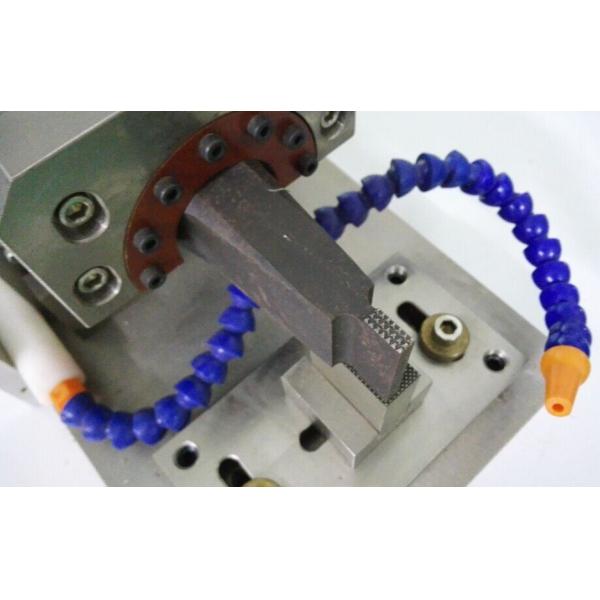

Horn was made with special material, the machine structure design.
4. Our machines built-in protection circuit, safe.
5. Used in metal similar welding, which can implement single point
or multi-point welding for nonferrous metals;Is widely used in
battery and metal products.
