Self-supporting Cable GYTC8A Fiber Optic Cable with APL Moisture
Barrier
Quick Detail:
- Figure 8, Self-supporting
- GYTC8A Fiber Optic Cable
- G.652D or G.657A
- Cable Diameter 2~60 core: 9.5*18.3mm
- Tensile Strength Long/Short Term: 600N/1500N
- Crush Resistance Long/Short Term: 300N/1000N/100mm
- Bending Radius Static/Dynamic: 10xD/20xD
- GYTC8A Cable complies with Standard YD/T 1155-2001as well as IEC
60794-1
Description:
The fibers,250μm,are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A FRP locates in the center of core as a
non-metallic strength member. The tubes (and fibers) are stranded
around the strength member into a compact and circular cable core.
After an Aramid yarn Strengthening layer is applied around the
cable core. This part of cable accompanied with the stranded wires
as the supporting part are completed with a polyethylene(PE) sheath
to be figure 8 structure.
Applications:
- Adopted to Outdoor distribution.
- Suitable for aerial duct and buried method.
- Long distance and local area network communication.
KT3006 Self-Supporting Fiber Optic Cable GYTC8A with APL Moisture
Barrier
Description and Standards:

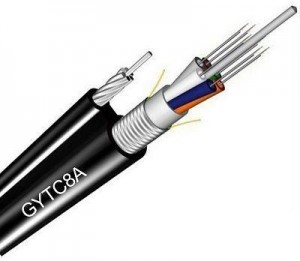

The KT3006 GYTC8A fiber optic cable is designed for durability and
efficiency in aerial installations. It features fibers of 250μm
placed within a loose tube composed of high-modulus plastic. The
tube is filled with water-resistant filling compound to ensure
fiber protection.
A Fiber Reinforced Plastic (FRP) serves as the central strength
member, around which the loose tubes and fibers are stranded to
form a compact cable core. An aramid yarn layer enhances the
cable's strength, while stranded wires act as the supporting
structure in the figure-8 design. A polyethylene (PE) sheath
surrounds the entire assembly, ensuring weather resistance.
The GYTC8A cable adheres to the YD/T 1155-2001 and IEC 60794-1
standards.
Key Characteristics:
- Self-Supporting Design: Stranded steel wires provide tensile strength for aerial
applications, minimizing installation costs.
- Mechanical Performance: Designed to withstand high tensile and crush stresses.
- Hydrolysis Resistance: High-strength loose tubes filled with special compounds protect
against moisture and hydrolysis.
- Moisture Protection Measures:
- Central steel strength member.
- Filling compounds within the loose tubes and cable core.
- Full cable core filling ensures watertight integrity.
Technical Specifications:
- Cable Dimensions: 9.5 mm x 18.3 mm for all configurations.
- Weight: 125 kg/km.
- Tensile Strength: 600 N (long-term), 1500 N (short-term).
- Crush Resistance: 300 N/100 mm (long-term), 1000 N/100 mm (short-term).
- Bending Radius: 10D (static), 20D (dynamic).
Optical Fiber Performance:
Single-Mode (G.652/G.655):
- @1310 nm: ≤0.36 dB/km (G.652), ≤0.40 dB/km (G.655).
- @1550 nm: ≤0.22 dB/km (G.652), ≤0.23 dB/km (G.655).
- Cable cut-off wavelength: ≤1260 nm (G.652), ≤1480 nm (G.655).
Multimode (50/125μm, 62.5/125μm):
- @850 nm: ≤3.0 dB/km.
- @1300 nm: ≤1.0 dB/km.
- Bandwidth:
- @850 nm: ≥500 MHz·km (50/125), ≥200 MHz·km (62.5/125).
- @1300 nm: ≥1000 MHz·km (50/125), ≥600 MHz·km (62.5/125).
- Numerical Aperture:
- 50/125μm: 0.200 ± 0.015 NA.
- 62.5/125μm: 0.275 ± 0.015 NA.
Operating Temperature Range: -40℃ to +60℃.
Ordering Information:
- Cable Marking: Zion Communication KT3006 GYTC8A XXX M (customizable upon
request).
- Packaging: Delivered in 1000M or 2000M wooden drums, customizable upon
request.
- Lead Time: Typically 25 days after deposit receipt.
