Manual PCB V-cut machine, V-cut PCB Separator machine, Best selling
manual pcb cutter

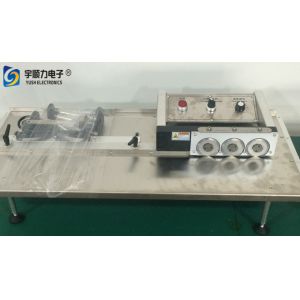

Model: YSVC-3S
1. With unique cutting method, the circuit board is cut by six
blades. It is a group composed
of one upper and one lower blade, and is also a cutting unit.
2. There are A, B, C, three groups. The whole cutting process is
divided into three stages fr-
om group A blade which cut 20% board then to the group B blade
knife cut through groove
cutting by group A to complete another 40% .the last 40% is cut by
group C blade.
3. Because each cutting volume is small, the stress produced during
the cutting progress
declined by more than 80% compared with the traditional cut off at
a time.
4. Thus the edge of the board and its surface are very smooth
without warping.
5. Currently, it is the only machine that can guarantee the
aluminum plate without deformation after cutting.
6. because of the multiple cutting, cutting process is very smooth
and greatly improves the capability of position of V-CUT groove.
10. Because cutting force of the blade is small. And blade made of
SKD61 high speed steel material which is imported from the Germany.
durability of the blade greatly improved, and the lifetime can be
one year or more when cutting the aluminum board.
11. Circular knife can turn mill reoccupy many times, the shape of
cutter can be customized.
12. X, Y axis can free adjustment and make the cutting accuracy to
the highest.
