Description of LAN Magnetic Transformer:

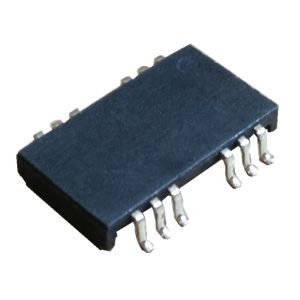

Meet the LP0009NLE (a clone of the Pulse H0009NL), a
high-performance 10/100Base-T transformer equipped with a LAN
magnetic module. It is designed specifically for Ethernet
connectivity, making it stand out in a highly competitive market.
LINK-PP's 10/100 PC Card LAN Magnetics Modules provide fast and
reliable networking capabilities. Compliant with IEEE 802.3
standard for efficient data transmission and connection. The
compact design and cutting-edge technology enhance your network
experience.
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| 1 | 10/100Base-T | 1:1 | -- |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel,Carton | -- | SMT | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 12 | -- | 1500 Vrms | --- |
NOTES:
1. Peak solder temperature rating per Tabe 15-20 in IPC/JEDED
J-STD-020C.
2. Low profile packages from .094"(2.39mm) to .078(1.98mm) for PC
card and CardBus applications.
3. Compliant with IEEE802.3u.
H0009NL LAN Magnetics Datasheet:
LP0009NLE.pdf
Competitive Advantage of Link-pp
☛ Over Two Decades of Expertise
LINK-PP is a distinguished designer and manufacturer of LAN
Magnetic transformers.
☛ Abundant workforce and advanced infrastructure:
LINK-PP has 2,600 employees in four cutting-edge factories.
Combining expertise with advanced infrastructure.
☛ Network performance guarantee:
Our Transformer Modules pass the Pass Fluke network analyzer test
and their performance exceeds industry standards.
☛ Deliver on time:
Depending on your needs, LINK-PP offers instant stock with fast
4-week delivery.
☛ Customized solutions at zero additional cost:
One-on-one custom design services are provided at no additional
cost.
LP0009LE Cross Pulse HX0009NL LP000NLE Cross Pulse H0009NLLP0009NLE
Cross Pulse H
