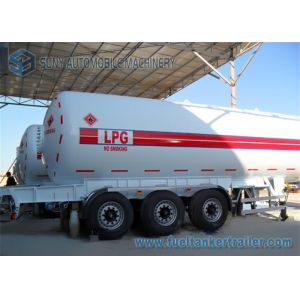

13 M 3 Axle 59.52 M3 25 Ton LPG Propane Gas Tanker Trailer
Description:
1. 59.52 M3 13 M 3 Axles 25 Ton LPG Propane Gas Tanker Trailer
2. truck wheelbase: 7230 + 1310 + 1310 mm, 12 tires;
3. propane gas tanker truck capacity: 59.52 m3, 59.52 cbm, 59200 L,
about 25 T, 25000 kg
4. propane gas tanker truck dispenser: optional
Applications:
1. We manufacture tanks and vessels required for storage and
transportation tanks of various liquids and gases like LPG,
PROPANE, PROPYLENE, AMMONIA, LIQUID CARBON DIOXIDE, CHLORINE,
HYDROGEN, NITROGEN, OXYGEN, ARGON, SULPHUR DIOXIDE, BUTADINE,
ETHYLENE OXIDE AND OTHER GASES, in a wide range of various
capacities for use in domestic, industrial and transportation
sectors.
2. The manufacturing of these tanks requires special expertise,
technology and strict quality control measures.
3. These tanks are manufactured confirming to various design
standards like ASME SECT VIII DIV I & II, AD-MERKBLATTER, PD5500,
IS2825 and under the stagewise inspection of various third party
inspection agencies like DNV, BVIS, TUV, LLOYDS, PDIL and others.
4. We also manufacture a wide range of trucks, trailers, as well as
machineries to meet different customers' demand all around the
world.
Description:
59.52cbm 25ton 3 axle LPG semi trailer
Name | 25 ton 3 axle LPG semi trailer |
Model | SY9400GYQA |
Overall dimension length/width/height ( mm ) | 13000 *2500 * 3990 |
tank dimension length/diameter ( mm ) | 12837 * 2498 |
tank straight length ( mm ) | 11485 |
Total Volume ( m3 ) | 59.52 |
Medium | Liquefied Petroleum Gas |
Gross Vehicle Mass ( kg ) | 40000 |
Curb weight ( kg ) | 15000 |
Rated load ( kg ) | 25000 |
Number of Axles | 3 |
F/R Axle load ( kg ) | _/24000 ( Triaxial ) |
Wheel base ( mm ) | 7230 + 1310 + 1310 |
Rear track base ( mm ) | 1840 / 1840 / 1840 |
Approach/Departure Angle ( ° ) | _ / 20 |
F/R Suspension ( mm ) | _ / 1540 |
Tyre type | 12R22.5 12PR, 12pcs plus one spare tire |
Pieces of spring | _ / 7 / 7 / 7 |
Tank Body Material | Q235 carbon steel |
Color | Optional |
Semi trailer tail clearance | 540 mm |
Standard configuration | one outlet, double loading and unloading, double valve box, double
tool box, safe valves, temperature gauge, pressure gauge, emergency
cut-off valves, 13T BPW axle, 12R22.5 12PR, one spare tire, JOST
outrigger, JOST traction pin, fire bottle, anti-static ground tape,
iron splash guard, ABS |
