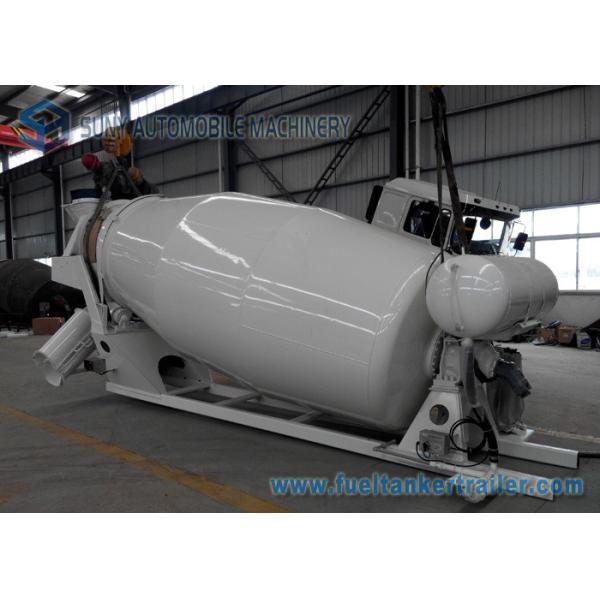

Electric Control 5 m3 Mixer Truck Bowl for 6X4 HINO Mixer Truck in
New Zealand
Description:
Our high quality 5 m3 SYCMTUB5 mixer truck upper-body can be
mounted on the indicated chassis for transporting and mixing
concrete, beton, cement. It ’ s equipped with Bonfiglioli reducer,
Rexroth hydraulic pump and motor, electronic control drum mixing
from cab and back, one chute fixed on the upper - body, 1650mm
length; three 900 mm length chutes, can clip on one by one.
Applications:
Our high quality 5 m3 SYCMTUB5 mixer truck upper - body with
competitive price is for mixing concrete, beton, cement - mainly
made by alloy steel, can be equipped on the indicated chassis for
transporting and mixing concrete, beton, cement.
Competitive Advantage:
1) For producing mixing tank and mixing blade, our factory use
B520JJ alloy steel as material, other factories use Q235 carbon
steel. B520JJ alloy steel is 1 ~ 2 times stronger than Q235 carbon
steel. Our mixing tank ’ s life can be 50 ~ 80 thousand cubic
meters, our mixing blade ’ s life can be 30 ~ 40 thousand cubic
meters.
2) Mixing tank is equipped with sectional mold tooling which
ensures the tank round and coaxial. Automatic welding ensures the
weld seam smooth, beautiful and stronger. Other factories don ’ t
use sectional mold tooling and automatic welding.
3) 3D mixing technology ensures uniform mixing, input rate ≥ 8m3 /
min, output rate ≥ 5m3 / min, residual rate ≤ 0 . 45 %, Slump 50 mm
~ 220 mm. We weld special wear rib on the edge of mixing blade
which makes the mixing blade ’ s life increasing more than 12 % .
Other factories don’t have 3D mixing technology and special wear
rib.
4) Reducer, hydraulic pump and motor are optional base on customers
’ requirements.
Specifications:
Electric Control 5 m3 Mixer Truck Bowl for 6X4 HINO Mixer Truck in
New Zealand
No . | Item | Description |
1 | Ladder | One unit. Watch from back, at right side. |
2 | Water pipes | Two water pipes. One pipe for wash inlet, another pipe for wash
whole body. PVC pipe hide in the sub - frame. |
3 | Water tank pipe | One unit. Watch from back, at right side. |
4 | Air pressure box | One unit. Watch from back, at right side. |
5 | Mix direction | Watch from back, anticlockwise rotate for mixing function. |
6 | Engine | Watch from back, engine is clockwise rotate. |
7 | Chutes | One chute fixed on the upper - body, 1650mm length ; three 900 mm
length chutes, can clip on one by one. |
8 | Electronic control | Electronic control from cab and back. |
9 | Reducer | Bonfiglioli. |
10 | Hydraulic pump | Rexroth. |
11 | Hydraulic motor | Rexroth. |
12 | Paint | First time iron red anti-rust paint, second time gray middle paint,
third time white paint, forth time white paint. |
13 | Discharge system | Manual. |
14 | Water tank | 400 Liters. |
15 | Others | No side guard, no mudguard and no transmission shaft. |
More Pictures:
