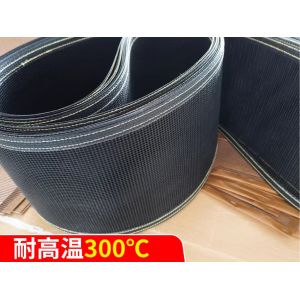

Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications

    Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers

    Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers
    • Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers
    • Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers
    • Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers
    • Buy cheap Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications from wholesalers

    Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications

    Ask Lasest Price
    Brand Name : 3A Rubber
    Model Number : 3A3008
    Certification : ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T,L/C,Paypal,Western Union
    Supply Ability : 10000kgs per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

    Food Grade PTFE Mesh Conveyor Belt with Chemical Resistance and Permeability for High Temperature Applications

    high temperature resistant PTFE open fiberglass mesh , PTFE / PTFE mesh conveyor belt


    Specifications

    We are the manufacture of PTFE coated fiberglass mesh fabric
    and produce of different kinds with various open mesh size.

    PTFE coated fiberglass mesh fabric:
    We manufacture different kinds with various open mesh size.


    Main Features:

    1. Heat resistance property---It is able to wok stably between -60oC to 260oC.

    2. Excellent non-sticky property---It easier to remove those resins, dopes, oil and other sticky things.

    3. Good mechanical property with no distortion and low friction coefficient.


    Applications: Being used in paper printing for protecting from the oil and other sticky things. It is widely used in PRINT INDUSTRY as conveyor belt.


    Any special requirement, please contact the research department.


    PTFE Coated Fiberglass Open Mesh Conveyor Belt


    1. High temperature resistance—It Can continuously work under-140 to 320°C,max resist high temperature up to 360°C.

    2. Permeability—It can avoid wasting heat and improve drying efficiency for it’s permeability.

    3. Chemical resistance—It can resist all most of chemical medicines.

    4. Non Stick—It can easily remove all kinds of adhesives such as resin, paint and chemical

    medicine, easy to clean.


    ModelMesh SizeMaterialThicknessWeightTemp ResistanceMax WidthTensile Strength
    11x1mmfiberglass0.5mm370g/m²-70~320°C4000mm310/290N/cm
    22x2mmfiberglass0.7mm450g/m²-70~320°C4000mm350/310N/cm
    34x4mmfiberglass1.0mm400g/m²-70~320°C4000mm390/320N/cm
    44x4mmfiberglass1.0mm450g/m²-70~320°C4000mm390/320N/cm
    54x4mmfiberglass and kevlar1.2mm600g/m²-70~320°C4000mm895/370N/cm
    64x4mmfiberglass1.0mm500g/m²-70~320°C4000mm395/370N/cm
    74x4mmKevlar1.0mm500g/m²-70~320°C4000mm900/600N/cm
    84x4mmfiberglass1.0mm550g/m²-70~320°C4000mm395/370N/cm
    910x10mmfiberglass1.2mm450g/m²-70~320°C4000mm360/300N/cm
    100.5x1mmfiberglass0.5mm420g/m²-70~320°C4000mm310/290N/cm
    112x2.5mmfiberglass0.9mm600g/m²-70~320°C3000mm390/320N/cm


    1. Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.

    2. Shrinking machine for garment fabric, high-frequency and UV dryer.

    3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.

    4. Oiling machine for paper glazing and waxing, plant engineering.

    5. Seperating sheet for hardboard production etc.
