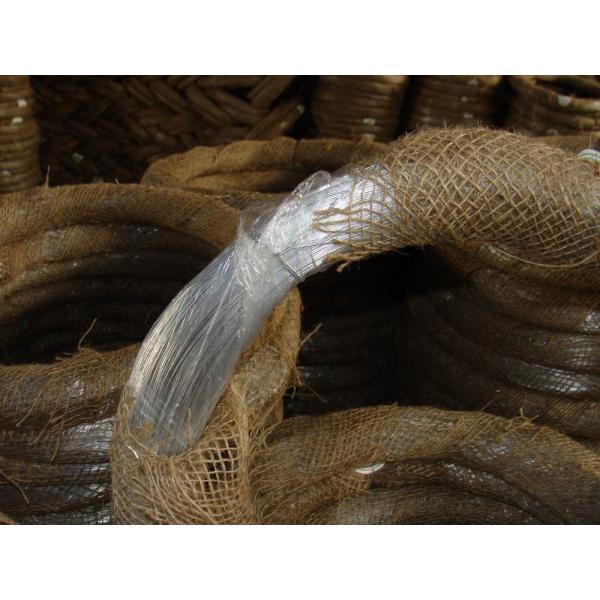

zinc coated Galvanized Iron Wire made in china
Standard wire gauge for electro galvanized iron wire: From 8# to
16#
Electric galvanized iron wire uses: Electric galvanized wire is
used in weaving of wire mesh, fencing for expressway and
construction.
Hot-DIP Galvanized Iron Wire Technical Information: Material: Super
carbon steel Processing by drawing, hot-DIP zinc coating
Hot-DIP galvanized iron wire standard wire gauge: From 8# to 24#
Hot-DIP galvanized wire property: Thick zinc-coating layer of
hot-dipped galvanized iron wire offers super corrosion resistance
with firm coating layer. Custom size available.
Galvanized iron wire uses in weaving of wire mesh, fencing for
expressway and construction.
Thick zinc-coating layer, uper in corrosion resistance
1. Materials: (a). Mild steel wire (b). Bullet wire (c).
High-carbon steel wire.
2. Wire gauge size: BWG8# 14# 16# 18# 20# 21# 22#
3. Processing:
First draw (the material of wire rod to the right wire
diameter0---Wire Annealing---Rust Removing--- Acid Washing---
Boiling--- Drying--- Zinc Feeding--- Wire Coiling.
4. Zinc coating: 8-15g/mm2 electro galvanized, 30-70g/mm2 hot DIP
galvanized, 100-500g/mm2 heavy duty galvanized zinc coat.
5. Elongation: 10-15% for low carbon steel wire
6. Tensile strength: 350-550n/mm2 soft, 550-950n/mm2 hard drawn,
1000-2600n/mm2 high tensile strength.
size | dia |
| 4# | 6.0MM |
| 6# | 5.0MM |
| 7# | 4.5MM |
| 8# | 4.0MM |
| 9# | 3.8MM |
| 10# | 3.5MM |
| 11# | 3.0MM |
| 12# | 2.8MM |
| 13# | 2.5MM |
| 14# | 2.2MM |
| 15# | 2.0MM |
| 15# | 1.8MM |
| 16# | 1.6MM |
| 17# | 1.4MM |
| 18# | 1.2MM |
| 19# | 1.0MM |
| 20# | 0.9MM |
| 21# | 0.8MM |
| 22# | 0.7MM |
| 23# | 0.6MM |
| 24# | 0.55MM |
| 26# | 0.45MM |
| 28# | 0.35MM |
| 30# | 0.3MM |
Size(mm) |
Tensile strength |
0.30---1.60 |
290-550 |
1.61---5.00 |
400-1200 |
Size(mm) |
Coil size |
Spool packing |
Big coil packing |
0.30_0.45 |
8inch |
1_100kg/spool |
ID(mm) |
OD(mm) |
0.46-0.60 |
8, 12inch |
1_100kg/spool |
|
|
0.61-1.60 |
12,14,16inch |
1_100kg/spool |
250-400 |
400-700 |
1.61-5.00 |
|
|
450 |
800 |
