Galvanized Steel Slitting Lines Slitter Rewinder Machine 10T Coil Weight

(0.7-3)x1250mm Hydraulic Slitting Line with Slitting Speed 30m/min

1. Technical Parameter

1. Material of processible coiled plate: apply for various steel plate 450Mpa;

2.Thickness of coiled plate 0.7—3mm;

3.Width of coiled plate 1250mm;

4. Precision of slitting width tolerance: ±0.02mm;

5. Slitting speed 0—30m/min ;

6. Loading capacity of de-coiler machine(feeding machine) : 10T;

7. Coil I.D: 508mm;

8. Coil O.D: 1600mm;

9. Knife pivot diameter of slitting 200mm; material 40Cr;

10. Slitting blade 200×340×20; 10pcs

11. Material of slitting blade 9CrSi;

12. Hardness of blade HRC58°—60°;

13. Recoiler I.D 508mm;

14. Power : 380V three-phase electricity :50Hz;

2. Composed Device

• Hydraulic entry coil car
• Hydraulic de-coiler
• Hydraulic pinch and press and pre-leveling device
• head cutting machine
• slitting machine
• scrap winder
• Tension stand
• Hydraulic recoiler
• Hydraulic unload car
• Electrical control system
• Hydraulic system

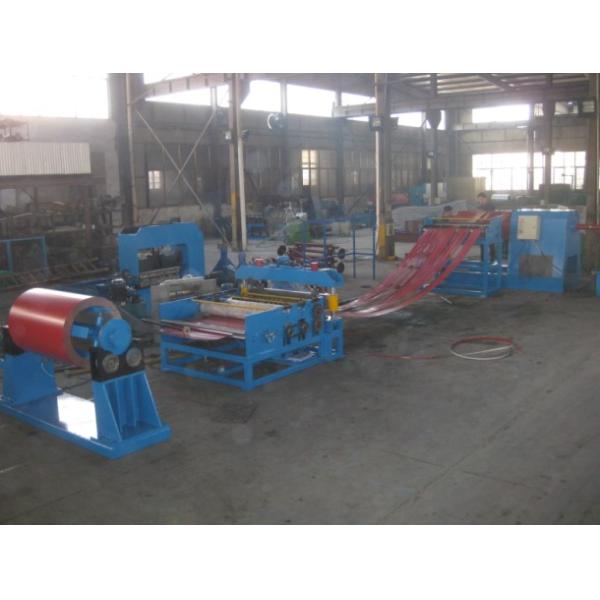

3. Machine Photo

4. Customes Visiting

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
