Airport x ray security systems With high Steel penetration 34mm SPX-6550 Scanner

Airport x ray security systems With high Steel penetration 34mm SPX-6550 Scanner

General Specification

● Tunnel Size: 650(W)*500(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 170kg
● Dose per Inspection <1.4Gy/h
● Resolution 34AWG to 40AWG

X-ray Generator

● Generate direct: Upward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%

Image System

● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Assist to detect drug and explosive powder

Installation Data

● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.7KW(working)
● Noise: <58db

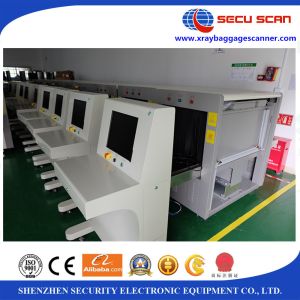

Our Work Shop

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
