Name: Cantilever Style Oral Liquid Blister Packaging Machinery for
Vial filling,sealing package

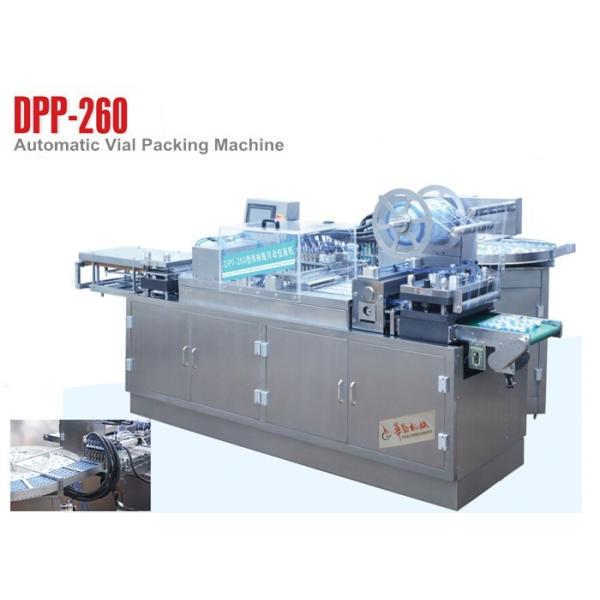

The DPP-260 ampoule/vial blister packing machine is a newly
packaging machine which was designed by our company; Its function
has reached domestic leading level. It is suitable for packaging
ampoules, penecilins and similar products into blister with
automatic feeding system, This machine is adopted with
micro-computer PLC, frequency converter, touch panel operation,
high automation; the blister packing mchine is ideal blister
packaging equipment. The product passed the provincial science and
technology appraisal.
Specifications
Item Model | DPP-260 |
Punching Frequency | 10-30 times/min |
Max. Forming Area and Depth | 250×180×30 |
Puling length | 40-200 |
Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.8)×260×(Φ400) |
PTP(mm) | (0.15-0.8)×260×(Φ400) |
PET(mm) | (0.15-0.8)×260×(Φ400) |
Power | 380V 50Hz 4.5k |
Air compression(self-prepared) | 0.6-0.8Mpa≥0.5m³/min |
Recycle water or circulating water consumption | 40-80L/h |
Overall Dimension(L*W*H) | 2750×750×1450(including foundation) |
Dimension of Each Part | 1450×750×1300 |
1300×750×1450 |
Weight | About 700kg |
Description
- The length of the tray can be input in touch screen. Molds are
located in positioning slot, and it’s
- convenient to change the molds. The blisters are formed by air
blowing which is controlled by encoder.
- HIMI: PLC Control, Frequency inverter for speed controlling.
- Step motor pulling system for saving packaging material and easier
adjusting.
- Auto feeder: It can be designed and required by clients’ different
requirments.
Attachment
Manipulator, bottle machine and blister packing machine.
Please advise us if you don’t need bottle unscrambler.
Machine selection
Machine selection 1
| Machine selection 2
| Machine selection 3
| Machine selection 4
|
| bottle unscrambler | bottle unscrambler | bottle unscrambler | bottle unscrambler |
Homemade manipulator
| Imported manipulator
| Homemade manipulator
| Imported manipulator
|
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange
engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named
Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s
development.
From beginning of company opening, we are especially focus on
quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO
international quality system certification, CE certification and
gain several utility model patents and invention patents issued by
state patent office of China.
Q: what information should I let you know when I want to get
quotation?
A: - the size of your products,the target capacity you want the
machine meet. The more information the better.
