Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor

    Buy cheap Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor from wholesalers

    Buy cheap Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor from wholesalers
    • Buy cheap Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor from wholesalers

    Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor

    Ask Lasest Price
    Brand Name : Brotherhobby
    Model Number : BHM2804
    Certification : CE, ROHS
    Price : $10/pcs
    Delivery Time : 5-7 days
    Payment Terms : T/T western union
    Supply Ability : 200000/month
    • Product Details
    • Company Profile

    Multicopter 2804 2300KV RC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor

    Multicopter 2804 2300KVRC Brushless Motor,high efficiency Brushless DC Motor,Quadcopter Motor

    Design Feature:

    1. Long life of Japan NMB ball bearings.

    2. Efficient Japanese Kawasaki stator steel.
    3. Rare earth magnets stable up to 180°.
    4. Anaerobic pure copper wires.
    5. CNC machining aluminum alloy shell.
    6. The Silicone wire leads.
    7. The balance of the patent technology.
    8. The Unique connection method.

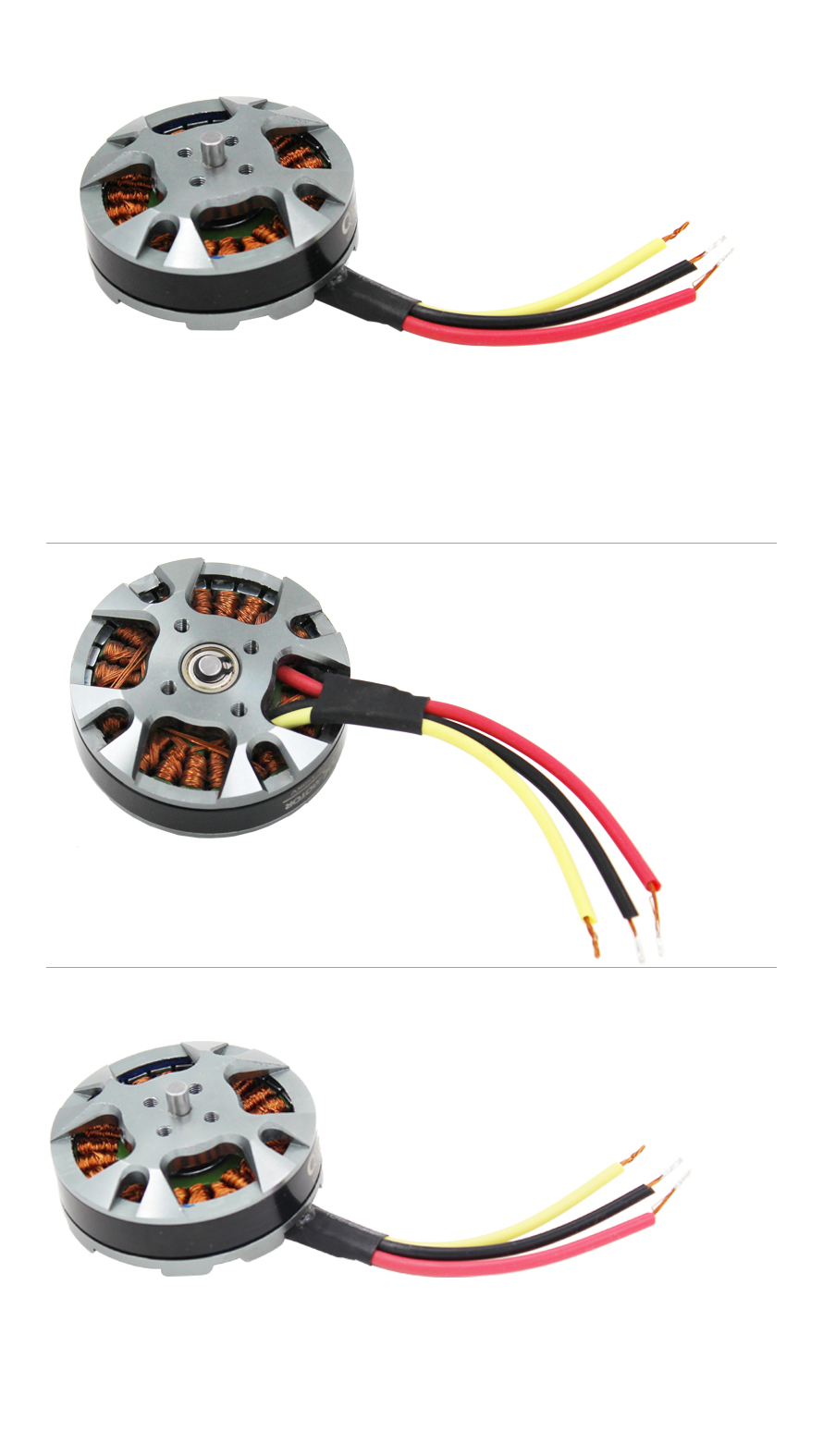

    2804 outer rotor brushless dc motor

    MOTOR: QM2804 Technical Datas
    KV2300KVIdle Current @ 10.0V0.6A
    Configu-ration12N14PNo.of Cells( Lipo)2-3S
    Stator Diameter22mmMax continuous Current (A) 60S12A
    Stator Length4mmMax continuous Power (W) 60S144w
    Shaft DiameterM5Max efficiency>70%
    Motor Dimension( DiaxL)28x15mmInteral resistance112mΩ
    Net Weight( g )26.5Recom. Speedcontroler15A
    PropVolts (V)Amps (A)Thrust (g)
    5in three - bladed propelle7.47.1290
    11.113.0520
    6in three - bladed propelle7.47.0390
    11.117.5710

    Packaging Detail:
