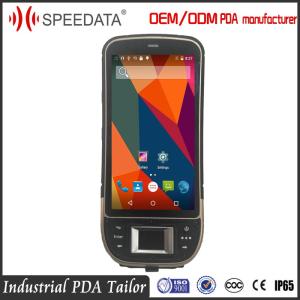

Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 4.5 inch display

Name: Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 45 inch display
Brand: Speedata
Price: 1 USD

Ask Lasest Price
Brand Name :	Speedata
Model Number :	KT45-FZ06
Certification :	IP65 CE
Payment Terms :	Western Union, MoneyGram, T/T, PayPal , Escrow, L/C, D/A, D/P
Supply Ability :	3000pcs / month
Delivery Time :	5-7days after receiving payment

Add to Cart

Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 4.5 inch display

Fingerprint Module Specification

sensor UPEK TCS2SS
1:1 verification matching speed < 500ms(Feature extraction and fingerprint matching)
1:1000 Fingerprint search time < 1s
Resolutions 500DPI
Image Size 256x288 pixels
Security level 5, adjustable
Capacity 1000 fingerprints
FAR ＜0.005% (Security Level is 3)
FRR ＜0.008% (Security Level is 3)
Working current <100mA
Peak current <120mA
Communication interface TTL(RS232)
Communication Baud rate 38400bps,57600bps,115200bps
Working temperature -10℃~50℃
Working humidity 45%RH~85%RH (no dew)

Data Sheet

Display			4.5inch IPS 480*854 Capacitive
touch screen			Capacitive
Form Factor			Bar type classical Pocket PC,Industrial appearance
GPS			UBLOX module
Bluetooth			v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi			JORJIN WG7310 WiFi (802.11 b/g/n)
RFID Reader		option1	LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
		option 2	LF RFID(125KHz)
		option 3	HF RFID(13.56MHz ISO 14443A/B)
		option 4	HF RFID(13.56MHz ISO 1443A/B ISO 15693)
		option 5	NFC Reader (only android OS)
		option 6	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
		option 7	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct modee----with inpinj R2000 shipset
Barcode scanner		option 1	NEWLAND:EM1300(1D Infrared barcode reader)
		Yes	NEWLAND:EM3095(1D/2D barcode reader)
		option3	symbol:SE955(1D laser barcode reader)
		option4	HoneyWell:N4313 (1D laser barcode reader)
		option 5	Honeywell:5100(1D/2D barcode reader)
		option 6	symbol se4500(1D&2D bar code reader)
External Interface			USB HOST/RS232(Customized)
Protection class			IP 65
Drop resistance level			1.5m
Camera Function	Camera		8MP AF
	Video		Support still image and video capture
Keypad	Front
	Side

Key features

1. 4.5 inch IPS , outdoor sunlight visible

2. Industrial-grade mobile handheld device
3. IP65 industrial standard waterproof , dustproof , drop resistance
