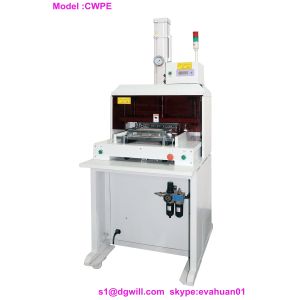

Automatic FPC Punching PCB Depaneling Machine with LCD Control Features:
1 . Depaneling PCB / FPC by means of punching dies , to avoid
micro-cracks caused by manual .
2 . Cast iron framework for rigidity. Punching dies are changeable
. Easy set up of punching dies .
3 . Moveable lower die for easy loading and unloading
Automatic FPC Punching PCB Depaneling Machine with LCD Control Specification:
| PCB separator machine size | 730 X 810 X 1700 mm |
| Power supply | 110 / 220 V |
| Punching die | Made according to customer 's products |
| Depression (Pa) | 0.45-0.70 |
| Machine Weight | 530 kg |
| Pcb separator warranty | free for one year |
Automatic FPC Punching PCB Depaneling Machine with LCD Control Advantage:
1 This punch is mainly used for cutting FPC and PCB rigid board
products with molds, which can avoid PCB tin cracks, cracks and
burrs caused by manual folding, cutting, pliers and other methods.
2 The punching speed, punching pressure and punching time can be
adjusted according to different products or molds.
3 It is convenient to replace the mold, and the touch screen is
equipped with a special password button for mold change, which is
safe to operate.
4 The lower mold can move longitudinally, which is convenient for
picking and placing products and ensuring personal safety.
5 The two-handed button is used for synchronization (within 1
second) to control, eliminating human-made safety hazards.
6 The punching machine has a safety door, which cannot be started
when the safety door is not installed to prevent accidents caused
by negligent operation.
7 The punch is equipped with optical eyes. During the working
process, when the optical eyes sense a hand or other objects, the
machine stops. At this time, the machine cannot be started by
pressing the two-hand system. The machine cannot resume normal use
until the hand or other objects are removed. Ensure safe operation.
8 The press uses clean air source, no oil, low power, low noise,
energy saving and environmental protection, convenient maintenance,
fast speed and stable output.
9 The operation mode can be either manual or automatic. The
computer count is combined with the program, and the daily output
and total output are recorded at the same time, which is convenient
for statistics, accurate counting and high efficiency.
10 Power uses pneumatic technology, one air compressor can work for
multiple punch presses at the same time, and the cost of normal use
and later maintenance is lower than other types of punch presses.
