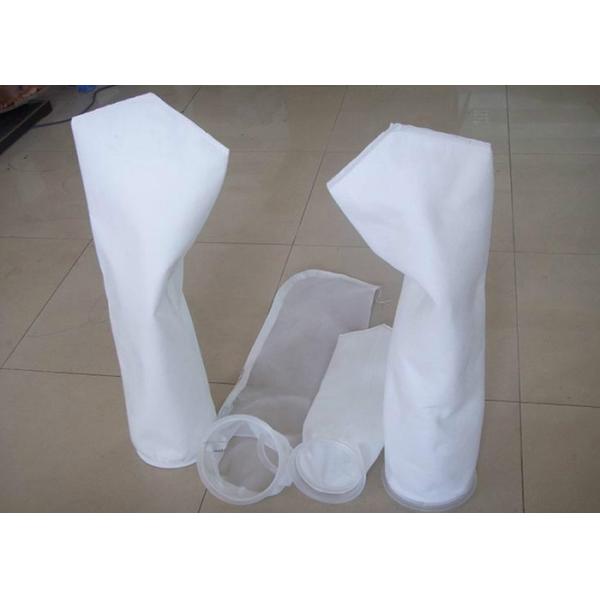

Micron Nylon Mesh / Needle Liquid Filter Bag Plastic / Steel Ring
for Water Filtration
Quick Detail:
Materials:
1. Polypropylene felt
2. Polyester felt
3. Nylon monofilament
4. Polyester monofilament
Micron rating : 0.5um ~800um
Good anti abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specification of PP and PE HDPE Liquid Filter Bag 1-200 micron
filter efficiency :
No1 bag:φ180mm×410mm No3:φ102mm×210mm
No2 bag:φ180mm×810mm No4:φ102mm×380mm
Collar Extension material: galvanized steel ring, stainless steel
ring, polyester plastic ring, polyethylene plastics ring
Max temperature: PP:80℃,PE:120℃,NMO:150℃
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock , Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be
customized |
| Item | swimming pool filter |
| Type | Various specifications |
| Material | PE , PP , NMO |
| Relative filtration pore size | 0.2,0.5, 1,5, 10, 25, 50, 100, 200 ,300...1000µm |
| Temperature | < 80-160°C |
| Bag top ring | Plastic(PP/PE)/stainless steel/zinc steel |
| Body construction | Sewn / welded |
| Type of bottom | Round / V triangle |
| Effective filtration area | Various specifications |
Special requirement of diameter and collar extension can be
customized |
Hardware:
1. Carbon steel retainer is standard on bags. Stainless steel, and
Polypropylene Rings are available as an option.
2. Polypropylene Flange Tops are also available.
Specifications:
| Micron Rating | Polyester
Felt | Polypropylene
Felt | Nylon Monofilament | Polyester Monofilament |
| 1 | √ | √ | | |
| 5 | √ | √ | | |
| 10 | √ | √ | | |
| 25 | √ | √ | | √ |
| 45 | | | √ | √ |
| 50 | √ | √ | √ | √ |
| 55 | | | √ | √ |
| 75 | √ | √ | √ | √ |
| 100 | √ | √ | √ | √ |
| 125 | √ | √ | √ | √ |
| 150 | √ | √ | √ | √ |
| 200 | √ | √ | √ | √ |
| 250 | | | √ | √ |
| 300 | | | √ | √ |
| 400 | | | √ | √ |
| 600 | | | √ | √ |
| 800 | | | √ | √ |
| 1200 | | | √ | √ |
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
