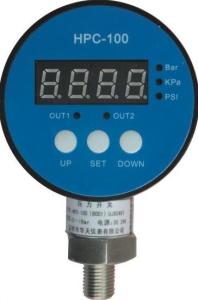

Features:
The design of embedded microprosessor.
4-digit number LED display set value and actual value.
Optional unit based on customer's demands ( Bar KPa PSI ).
Can set high and low pressure or level alarm point and output to
the control device.
Replacing mechanical instruments.
High stability ,high precision,low hysteresis, quick response.
Zero, the full range of digit control.
Alarm,control,remote signal in one.
Applications:
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system.
Energy and Water treatment system.
Automation equipment.
Industrial process control.
Performance parameters
Pressure range : -0.1~250MPa
Pressure mode : Gauge Pressure、absolute pressure
Output signal : Relay contact output/4-digit number LED display
Accuracy(%FS) : less than 0.5
Working voltage(V) : 12~36V DC(Standard：24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Response time (ms): 10
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L or the ceramic diaphragm
Housing material : 1Cr18Ni9Ti or aluminum alloy
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Protection grade: IP65
Weight : 90g
