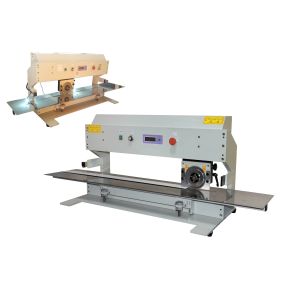

Automatic Pcb Separator Machine for 600mm Length PCB with CE
Certificate Features :
1. Separate pre-scored PCB assembly without stress on either PCB or
component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade
prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to
fit different groove depth and compensates for blade wear out
Specifications:
Model : | CWV-1A600 |
Size : | 1080*860*660 mm |
Machine Weight : | 120 Kg |
Minimize Thickness : | 0.6-3.5 mm |
Minimize Speed : | 100 / 200 / 300 / 500mm / s |
The Longest Minimize : | 600 mm |
Competitive Advantage :
1. LCD display : You could adjust the blade moving trip according
to your PCB length.
For example , your pcb is 200mm , then you could setup 200mm moving
trip .
2. Sensor : it protect our hands from depanelizing .
When you put your hands near the blades , the machine stop working
even though the operator step on pedal switch.
3. It has 4 speed positions to control cutting speed
4. We used Japanese High Speed Steel to make the blades, and baldes
should be re-sharpened 2-3 times .
