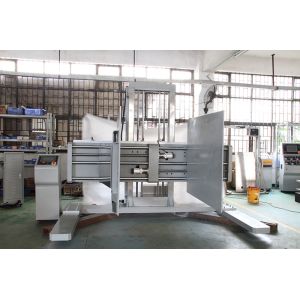

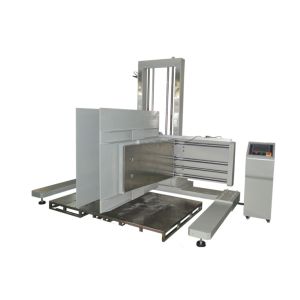

    ISTA Packaging Clamp Testing Machine With Panasonic Servo Motor

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A535
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    ISTA Packaging Clamp Testing Machine With Panasonic Servo Motor

    ISTA Packaging Clamp Testing Machine With Panasonic Servo Motor


    GENERL SPECIFICATIONS

    Packaging Dimensions: (WxDxH) 2240*2920*2320mm

    Power supply source: Single-phase, 110V±10%, 50/60Hz

    Gross Weight: 3640kg


    STANDARD FEATURES


    ItemDescription
    Max. Force400~3000Lb(can be customized)
    Maximum specimen weight600kg(can be customized)
    Load cell4 load cell for highest accuracy
    Control systemTouch screen controller, Windows 7, RS-232 interface
    MotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
    Force readingkgf, Ibf, N, KN, T etc
    Load cell Resolution1/250,000
    Load Precisionwithin ±0.25%
    Parallelism of PlatensParallel within ±2.5mm
    Clamping plate sizeHeight 48inch X depth 48inch
    Clamping plate adjustable height0~1000mm
    Clamping plate adjustable width200~2000mm
    Base plate dimension2200 X 2100mm(can be customized)
    Test speed0.25-2.5mm/sec (according ISTA 6- SAMS CLUB)
    SoftwareTM 2101
    Data displayLoad, displacement, speed, loading rate and elapsed time
    FunctionThe clamp can be up and down
    Clamping plate requirementMake the two clamping boards flat and non-deform under work condition (2000 Pounds) and make clamping boards’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm.
    Safety features

    E-Stop

    Over-load protection

    Upper and lower limit switches

    Load sensor with automatic retreat


    DESIGN STANDARDS

    ASTM D642 ISTA 6- SAMS CLUB ISTA 3J
