Product Description

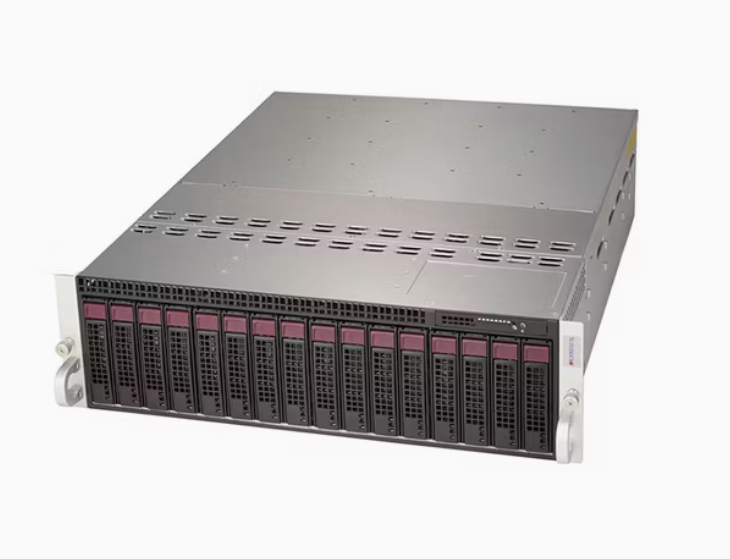

The Supermicro MicroCloud family delivers ultra‑dense 3U rackmount servers with 5, 8, 10, or 12 independent hot‑swappable nodes — saving up to 76% rack space versus equivalent 1U servers. Each node operates independently with its own CPU, memory, storage, and networking, supporting AMD EPYC 4004/4005, Ryzen 7000/9000 (AM5), or Intel Xeon 2300 processors (up to 16 cores, 170W TDP). With front NVMe bays, PCIe 5.0 expansion, and single‑width GPU support (T4/L4/A2), the MicroCloud is purpose‑built for cloud, CDN, web hosting, virtualization, edge, and AI inference at scale.

Key Differentiators

• 3.3× density of 1U servers: up to 12 independent nodes in 3U

• Hot‑swappable nodes — service one without downtime to others

• Per node: 4 x DDR5 DIMM slots, up to 192GB at 5600 MT/s

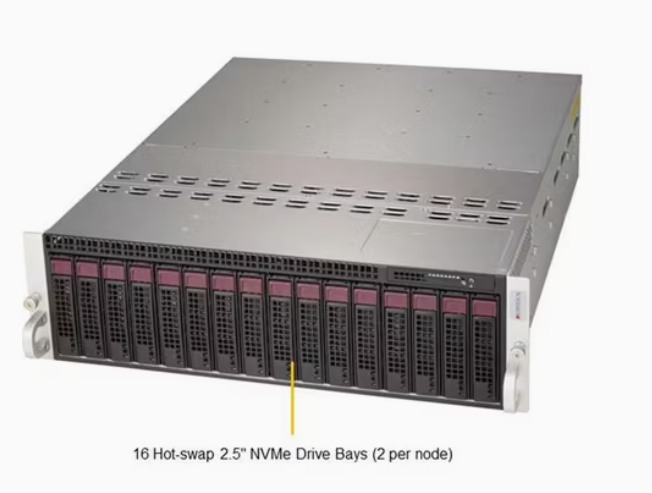

• Per node: 2 x 3.5”/2.5” hot‑swap NVMe U.2/SAS/SATA bays + 1 x M.2 PCIe 5.0 NVMe

• Per node: 1 x PCIe 5.0 x8 LP slot + 1 x Micro‑LP slot; supports single‑width GPU

• Per node: 2 x 2.5GbE/10GbE RJ45 + optional 25/100GbE via Micro‑LP + dedicated BMC

• Centralized IPMI 2.0, Redfish, KVM‑over‑LAN, TPM 2.0

• Redundant Platinum/Titanium PSUs (96% efficiency)

Specifications

Popular Models

• AS‑3015MR‑H5TNR – 5‑node (CPU+GPU)

• AS‑3015MR‑H8TNR – 8‑node (AMD EPYC/Ryzen)

• AS‑3015MR‑H10TNR – 10‑node (max CPU density)

• SYS‑5039MC‑H8TRF – 8‑node (Intel Xeon, DDR4)

Typical Configuration (per node)

• CPU: 1 x AMD Ryzen 9 9950X (16 cores, 170W)

• Memory: 128GB DDR5‑5600 (4 x 32GB)

• Storage: 1 x 960GB M.2 NVMe + 2 x 3.84TB U.2 NVMe

• Networking: 2 x 10GbE RJ45

Ordering Notes

• Base SKU prefix: AS‑3015MR‑xxxx (AMD) / SYS‑5039MC‑xxxx (Intel)

• Node suffix: H5TNR (5N), H8TNR (8N), H10TNR (10N)

• Motherboard (per node): H13SRD‑F (AMD) / X11SCD‑F (Intel)
