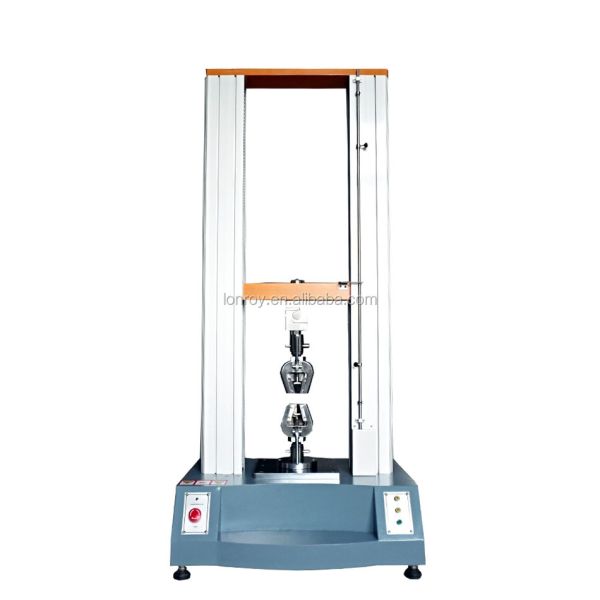

Double - Column Computer Servo Tensile Testing Machine

Main function-Double - column computer servo tensile testing machine

This machine is suitable for rubber, plastic, tires, rubber hose, adhesive tape, sole, thin films, the force that press a gram, FRP, ABS, EVA, PU, aluminum composite pipe, composite materials, waterproof materials, fiber, textile, wire and cable, paper, gold foil, belt, silk thread, spring, timber, medicine, packaging materials, adhesive tape and so on carries on the tensile, compression, tear, peel (either 90 degrees and 180 degrees) and other mechanical properties test and analysis.

This machine is combination of electronic technology and mechanical drive new material testing machine, the measurement and control of load, deformation and displacement is of high accuracy and sensitivity, this series of machine adopts single space structure, test space in space, mainly is suitable for the test load is lower than 2 kn metal, non-metallic materials testing, has the stress, strain and displacement control method can find out the most energetically, tensile strength, bending strength, compression strength, elastic modulus, breaking elongation, yield strength and other parameters.

Introduction to control software-Double - column computer servo tensile testing machine

Software operating system language: Simplified Chinese/English

Unit of force: N, KN, Kgf, Lbf, unit of length: mm, cm, in can be converted freely

Automatic zero: the measuring system will automatically zero after the computer receives the instruction to start the test.

Display mode: data and curve are displayed dynamically with the test process;

Results reproduction: the test results can be accessed at will, and the data curve can be reanalyzed;

Comparison of results: Multiple test characteristic curves can be superposition, reappear, enlarge and present a group of samples in different colors.

Emergency stop: the emergency stop switch is used to cut off the power supply of the whole machine in emergency;

Control mode-Double - column computer servo tensile testing machine

Computer software to set the speed, set the load fracture (rupture), running time and other control methods

Automatic determination of material fracture, collapse, etc., and automatic stop, can set automatic return

Type of curve:

Load - displacement, load - time, displacement - time.

Stress-strain, strain-time, stress-time.

The horizontal and vertical coordinates of the curve can be set arbitrarily.

Test data available:

Maximum strength, minimum strength, fracture, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, peel interval maximum, minimum, average, etc.With overload, overcurrent, overvoltage, undervoltage, overspeed, stroke and other multiple protection.

The results are derived from the crystal report format currently used by the national standard.

Double - column computer servo tensile testing machine

Technical parameters:
