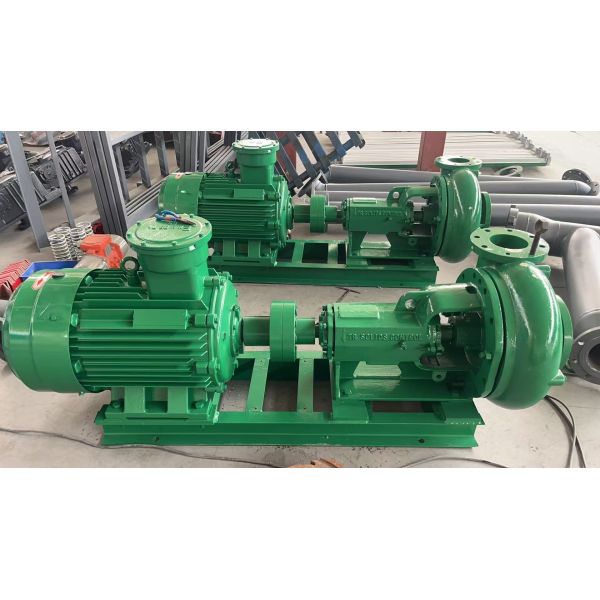

TR Solids Control Centrifugal Pump for Drilling
Product Description:
As a professional solids control centrifugal pump manufacturer, TR Solids Control offers the complete TRSB series centrifugal pump for oil & gas drilling mud circulation and transfer applications.
This solids control centrifugal pump features high-efficiency open impeller design, heavy-duty bearing
housing, and wear-resistant materials. The TRSB centrifugal pump handles flow rates from 30m³/h to 320m³/h with lifts up to 40m,
meeting various solids control system requirements.
Why Choose TR Solids Control Centrifugal Pump?
1. Wide Flow Range for Various Applications
Our solids control centrifugal pump covers 30-320m³/h flow rate and
20-40m lift, suitable for mud hopper feeding, degasser suction, and
centrifuge feeding.
2. Explosion-Proof Certification (ExdIIBt4/IECEX/ATEX)
This TRSB centrifugal pump is ATEX and IECEX certified for safe
operation in hazardous oil & gas drilling environments.
3. Dual Frequency Ready (50Hz & 60Hz)
Every solids control centrifugal pump supports both 50Hz and 60Hz
power supply, ideal for international drilling projects.
4. Wear-Resistant Impeller Design
The open impeller design (9-12 inches) of our centrifugal pump
handles abrasive drilling mud with extended service life.
5. Compact Footprint for Rig Integration
With dimensions as small as 1398×490×717mm, this TRSB centrifugal
pump fits easily into skid-mounted solids control systems.
6. Heavy-Duty Bearing Housing
Our solids control centrifugal pump features robust bearing housing
for continuous 24/7 operation in remote drilling sites.
7. Complete Model Range for Any Flow Requirement
From TRSB3×2-10J (7.5kw) to TRSB8×6-14J (75kw), our centrifugal
pump series covers every solids control pump application.
Parameters of Our Centrifugal Pump
Model | Flow rate | Lift | Impeller Diameter | Power | requency | Weight | Dimension |
TRSB8×6-14J | 320m³/h | 40m | 14in | 75kw | 50HZ | 1096kg | 1968×650×1017mm |
TRSB8×6-13J | 275m³/h | 35m | 13in | 55kw | 50HZ | 987kg | 1894×650×957mm |
TRSB8×6-11J | 200m³/h | 35m | 11in | 45kw | 50HZ | 786kg | 1811×558×858mm |
TRSB6×5-13J | 150m³/h | 30m | 13in | 37kw | 50HZ | 771kg | 1786×558×858mm |
TRSB6×5-12J | 120m³/h | 35m | 12in | 30kw | 50HZ | 696kg | 1696×568×805mm |
TRSB5×4-13J | 90m³/h | 30m | 11in | 22kw | 50HZ | 583kg | 1648×568×800mm |
TRSB5×4-12J | 65m³/h | 35m | 12in | 18.5kw | 50HZ | 561kg | 1595×505×800mm |
TRSB5×4-10J | 55m³/h | 28m | 10in | 15kw | 50HZ | 482kg | 1550×505×755mm |
TRSB4×3-13J | 45m³/h | 25m | 11in | 11kw | 50HZ | 464kg | 1510×505×755mm |
TRSB4×3-12J | 30m³/h | 20m | 9.5in | 7.5kw | 50HZ | 380kg | 1398×490×717mm |
Ex Standard: ExdIIBt4 / IECEX / ATEX (Explosion-proof for hazardous areas)
