20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing

    Buy cheap 20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing from wholesalers

    Buy cheap 20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing from wholesalers
    • Buy cheap 20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing from wholesalers
    • Buy cheap 20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing from wholesalers
    • Buy cheap 20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing from wholesalers

    20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing

    Ask Lasest Price
    Brand Name : SUPT
    Model Number : VCAP0020-0068-00A
    Certification : ce,ISO9001,CCC
    Price : $150.00/pieces >=2 pieces
    Payment Terms : T/T
    Supply Ability : To be negotiated
    Delivery Time : 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
    • Product Details
    • Company Profile

    20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing


    Product Description

    The flat voice coil actuator features fast response times, moderate thrust, reliable stroke, and high efficiency, and is specifically designed for semiconductor and electronic testing applications. With a peak thrust of 20 N, a continuous thrust of 5.5 N, and a stroke of 6.8 mm, this flat voice coil actuator achieves an ideal balance between thrust, speed, and stroke. With its compact dimensions (39 × 50 × 21.5 mm) and a height of just 21.5 mm, this flat voice coil actuator is well-suited for multi-axis testing platforms and high-density automation modules. It delivers smooth force output, is free of cogging effects, operates quietly, and offers high positioning accuracy, making it capable of supporting high-frequency reciprocating motion over extended periods. The motor has a maximum operating voltage of 8.2V and a back-EMF constant of 4.4 V/m/s, ensuring stable performance and low power consumption. Its advanced heat dissipation design reduces heat buildup and extends service life. This flat voice coil actuator is widely used in semiconductor probe stations, IC test equipment, sensor calibration systems, electronic component inspection, and small-scale automated assembly lines.

    Application:

    Compared to the rectangular series, the flat-type voice coil motor series has a relatively shorter stroke for the same volume, but its advantage lies in its lower profile. It delivers a thrust of up to 500 N and a stroke of 15 mm. The flat-type series is an ideal solution for generating short-stroke X-Y motion, and its primary market is the semiconductor and micro-machining industries.
    • Semiconductor chip test probe stations
    • Electronic component functional testing equipment
    • Precision sensor calibration systems
    • Small-scale automated assembly lines

    Technical Parameters:

    Product Mdel
    Peak Force
    (N)
    Continious
    Force
    (N)
    Total Stroke
    (mm)
    Max
    Voltage
    (V)
    Back EMF
    Constant
    (V/m/S)
    Weight of the Coil
    (g)
    Length(mm)
    Width
    (mm)
    VCAP0020-0068-00A
    20
    9.2
    6.8
    8.2
    4.4
    39
    50
    21.5
    VCAP0020-0160-00A
    20
    5.3
    16
    27.6
    4.4
    59
    50
    22.5
    VCAP0030-0020-00A
    30
    12.3
    20
    24.3
    10.5
    80
    74
    25

    VCAP0020-0068-00A:


    ParametervalueParametervalue
    ModelVCAP0020-0068-00APeak thrust20N
    Continuous Thrust (25°C)5.5NTotal stroke6.8mm
    Maximum Voltage8.2VBack-EMF constant4.4V/m/s
    Length39mmWidth50mm
    Height21.5mmWeight3.3kg

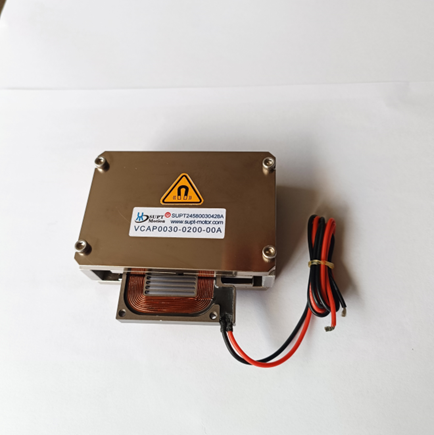

    Detailed Images
    Certifications

    Our Company

    Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.

    The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.

    The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.

    FAQ

    1.Are you manufacturer?

    RE:Yes,we are factory and 100% manufacturer.
    2.How can i get a quote?
    Re:Please provide the details requirements of the product,such as the specification,quantity,packing reuirements,etc.
    3.How long can i get them?
    Re:Normally,samples need 7-10 working days.
    Mass production need 12-18 working days.
    It depend on your quantity.
    4.Can you produce according to the samples?
    Re:Yes,we can produce by your samples or technical drawings.
    5.What is your terms of payment?
    Re:T/T 50% as deposit,and 50% will be paid before the shipment.We'll show you the photos of the product and packages before you pay the balance.
    6.What is your terms of delivery?
    Re:EXW,FOB.
    Our Service

    Service:
    A.Technical indicators & specifications can be customized.
    B.Free sample,freight collect.
    C.Satisfactory after-sales service.
    D.Flexible MOQ.

    Why Choose Us:

    A.100% manufacturer.
    B.Rich Production Experience.
    C.Advanced Machine.
    D.Strict Quality Control System.
    Packing & Delivery
    Loading Port
    Shanghai Port,China.
    Trade Term
    FOB
    Shipment
    LCL or FCL by sea,by air or by express DHL,UPS.
    Payment Term
    T/T,Western Union,E-checking,Trade Assurance and paypal also accept.
    Lead Time
    7-10 working days after payment and as customer's requirements.
