    Computer servo-controlled single-column tensile testing machine

    Ask Lasest Price
    Brand Name : Dongjun
    Model Number : DJ-26-11
    Certification : ISO9001,CE,
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 500pcs
    Delivery Time : 15-25Work days
    • Product Details
    • Company Profile

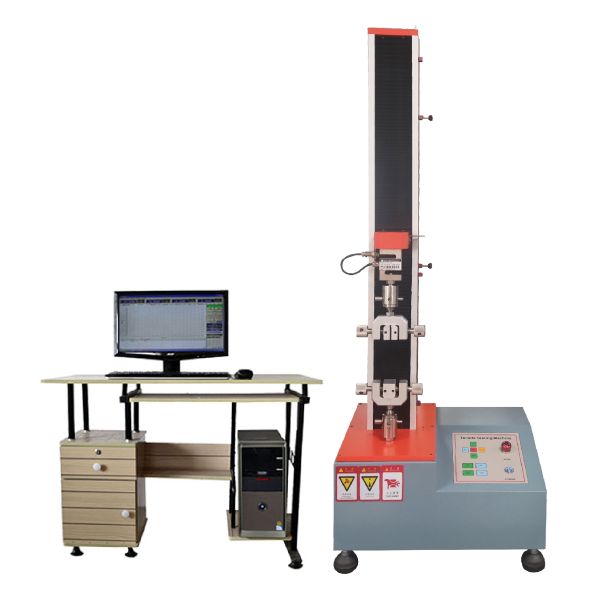

    Computer servo-controlled single-column tensile testing machine

    Computer servo-controlled single-column tensile testing machine

    Working Principle

    This machine is a new type of material testing machine that combines electronic technology with mechanical transmission. It has high precision and sensitivity in the measurement and control of load, deformation, and displacement. This series of models adopts a single-space structure, with the test space located in the lower space. It is mainly suitable for testing metal and non-metal materials with a test load of less than 2kN. It has stress, strain, and displacement control modes, and can determine parameters such as maximum force, tensile strength, bending strength, compressive strength, elastic modulus, elongation at break, and yield strength.

    .

    Parameters

    Execution standard

    GB/T16491-1996 Electronic Universal Testing Machine, etc.

    Load capacity

    2,5,10,20,50,100,200kg

    Host dimensions

    420×350×1520mm

    Effective force measurement range

    0.4%~100%

    Speed accuracy

    Within ±0.5%of the indicated value

    Test speed range

    0.001500mm/min


    Displacement measurement accuracyWithin ±0.5% of the indicated value
    Effective test width150mm
    Effectively stretch the space

    400mm

    motor

    220V±10% 0.2KW/0.4KW

    Switching of stress units

    50 Kg


    Machine Accessories and Configuration Details
    1. Testing Machine Host 1 set
    2. Japanese Tamagawa Servo Motor 1 set
    3. American Transcell High-precision Load Sensor 1 piece
    4. Deceleration System 1 set
    5.Taiwan TBI Precision Screw Rod 1 set
    6. Professional Testing Software Based on Operating System 1 set
    7. Brand Computer 1 unit
    8. Tensile Fixture 1 set
    9. Random Tools (special tools required for installation, maintenance and operation) 1 set
    10. Technical Data (user manual, warranty card, certificate of conformity) 1 set



    Applications:

    This machine is suitable for conducting mechanical property tests and analyses such as tension, compression, tearing, and peeling (both 90-degree and 180-degree) on rubber, tires, rubber hoses, rubber belts, shoe soles, plastics, films, acrylics, FRP, ABS, EVA, PU, aluminum-plastic pipes, composite materials, waterproof materials, fibers, textiles, wires and cables, paper, gold foil, strips, threads, springs, wood, medical packaging materials, adhesive tapes, etc.

    Cable & Wire

    Metallic Material

    Plastic Pipe

    Packing Material







    Company Profile

    PACKING AND TRANSPORTATION

    FAQ

    How to install and use the product?

    The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

    How about the packing for machine, is it safely protected during transportation?
    Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
