Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

    Buy cheap Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine from wholesalers

    Buy cheap Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine from wholesalers
    • Buy cheap Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine from wholesalers

    Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

    Ask Lasest Price
    Brand Name : Sayok
    Model Number : SN-900
    Certification : CE
    Price : EXW US$17900-20950/set
    Payment Terms : T/T
    Supply Ability : 50 set /month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

    Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine
    This machine is specially designed for the automatic rolling and folding of large-size disposable tablecloths, widely used in disposable non-woven, plastic, and PEVA tablecloth production lines. It can automatically complete feeding, edge alignment, precise folding, and rolling in one continuous process. With stable operation, high efficiency, and easy operation, it effectively improves packaging neatness and production capacity, greatly reducing labor costs. It is an ideal supporting equipment for disposable tablecloth manufacturers.

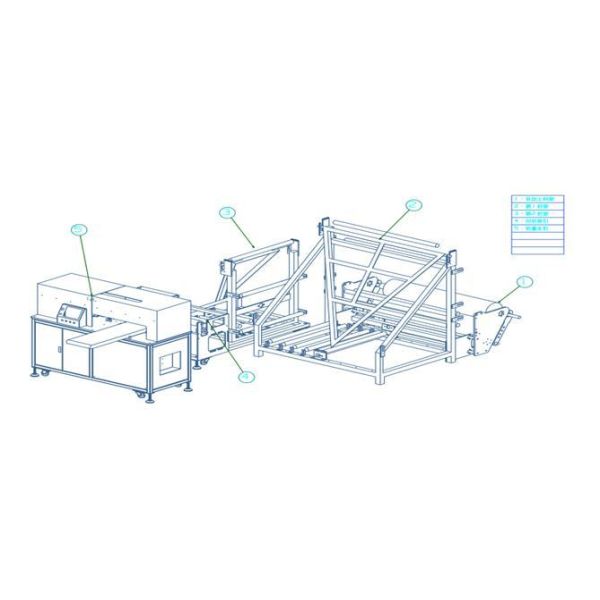

    1. Process Diagram

    It is a full automatic cutting machine, from large material rolls unwinding, folding, rolling, slitting as set length then clipping out for bagging, very compact and ideal design for large tablecloth's folding and cutting. It is customized for tablecloth's folding, and can be connected with the packing machine. Less labour force with high efficients, high pricisely and low costs, which are very useful for the disposable tablecloth manufacturer, especially the ones with difficult in labour forces.

    1. Tablecloth Roll Material Conveying: Equipped with a high-precision servo unwinding unit, it stably conveys various tablecloth rolls with adjustable speed to avoid stretching or wrinkling.
    2. Material Storage and Buffering: A dedicated buffer unit adjusts process rhythm, absorbs speed differences, and ensures production line continuity.
    3. Automatic Folding & Positioning Cutting: Advanced photoelectric positioning realizes precise folding (double/four-fold, etc.) and accurate cutting (error <1mm) by preset parameters.
    4. Pneumatic Clamping & Rolling: Pneumatic clamps transfer folded tablecloths to the rolling unit with adjustable tension, enabling neat rolling with customizable diameter.
    5. Finished Product Delivery: Rolled products are automatically sent out by conveyor belt for easy subsequent packaging and transportation.
    Specifications:
    Machine ModelSN-900A
    Raw Materialwidth 1000~1800mm

    Weight of the machine

    Mainframe: about 310KG, automatic loading rack: about 300KG

    Machine color

    White baking paint, chrome plating or oxidation surface treatment for some parts

    Operating Environmental Condition

    Dry and clean factory

    Power supply requirements

    Single-phase, AC 220V, 50/60 HZ

    The power line interface is a 16A triangle plug.

    Machine power

    Maximum power 1.5KW

    Air source requirements

    Compressed air: 0.4-0.8MPa

    Air consumption: 65L/min

    3 Inter pipe: 8 centimeters in diameter

    Folding speedFolding speed about: (8~12)±1PCS/min
    Folded dimensionslength 150 mm to 380mm,Width 150 mm to 220mm
    Transmission modeServo motor, guide rail
    Control system:human-computer interface setting operation, PLC programming control

    Operator

    1 Operator

    Machine Details:

    1. Folding & Rewinding Integrated Machine

    It can realize the one-step process of material unwinding, folding, cutting into pieces and rewinding into small rolls.

    2.Conpact Design Unwinding Raw Material Holder

    Large raw material helder design, can install .

    3. Working Process

    This machine consist of 5 parts:
    1. Tablecloth roll material conveying;
    2. Material storage and buffering;
    3. Automatic roll material positioning and cutting.
    4. Pneumatic clamp picking up the folded material;
    5. Finished product delivery by conveyor belt.

    4.Multi-functional customized mechanical devices enjoy quality service

    6. Automatic folding and rewinding machine for disposable deskcloth.
