Gravity Spiral Separator chute
1.Product Introduction
The spiral separator is a core gravity separation device in
chromium ore beneficiation lines. It is primarily used to achieve
high-efficiency
separation based on the density difference between minerals and
gangue. It is particularly suitable for processing fine-grained
(0.02–2mm)
chromite placer ores or ground materials. Within a complete
production line, the spiral chute often handles roughing,
scavenging, and even
cleaning tasks. Its notable advantages include zero power
consumption, a simple structure, and high processing capacity.
2.Application
The spiral separator is suitable for separating fine-grained (0.3--0.02 mm) materials, including iron ore, ilmenite, chromite, pyrite,
zircon, rutile, monazite,
tungsten ore, tin ore, tantalum ore, niobium ore, and other
non-ferrous metals, rare metals, and non-metallic minerals with
specific gravity differences.
3.Working principle
1. Pulp Feeding
The ore pulp is transported by a slurry pump to the top of the
spiral chute. It is then uniformly distributed into multiple spiral
heads via a distributor, where it flows slowly downward along the
surface of the spiral troughs.
2. Stratification in a Composite Force Field
As the pulp flows down the spiral incline, the mineral particles
are subjected to a combination of several forces:
Gravity: Causes the mineral particles to settle downward.
Centrifugal Force: Pushes higher-density particles toward the outer edge.
Transverse Secondary Circulation: A circulation pattern where the surface water flows outward and
the bottom water flows inward. This mechanism carries light
minerals toward the outer rim and pushes heavy minerals toward the inner rim.
3. Zoning and Discharge
After passing through 3–5 spiral turns, minerals of different
densities form stable zones:
Inner Zone: High-density chromite particles concentrate here to become the concentrate.
Middle Zone: Medium-grade minerals are collected as middlings.
Outer Zone: Low-density gangue is discharged with the water flow as tailings.
These three products are collected separately via a splitters
(launders) located at the bottom of the unit.
4.Advantages
Applicable Particle Size: 0.02–2mm; particularly suited for the separation of fine-grained chromium ore.
Feeding Concentration: Generally controlled between 20%–30%; concentrations that are too high or too low will negatively
impact separation efficiency.
Processing Capacity: A single unit can process 2–40 tons per hour (t/h), depending on the specific model (e.g., 5LL-1200, BLL-Φ600, etc.).

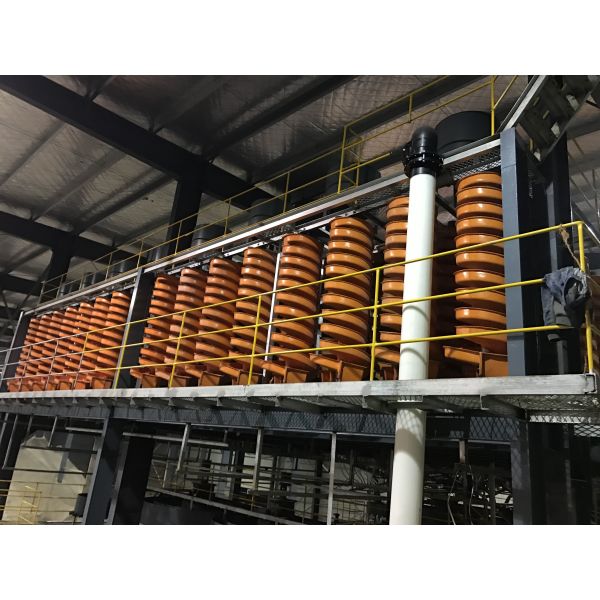

Process Configuration: Multiple units are often used in series (multi-stage circuits) to achieve a comprehensive recovery flow of
roughing → scavenging → cleaning.
Eco-friendly & Energy Saving: Features no moving parts and requires no power drive; characterized by low water consumption and minimal operating
costs.
5.Technical Specifications Rotary drum dryer
| Model | Diameter(mm) | Pitchmm | No. of Starts | Feeding Size (mm) | Feeding Density (%) | Capacity (t/h) | Dimensions (mm) | Weight (kg) |
| 5LL-2000 | 2000 | 1200 | 3 | 4 - 0.04 | 20 - 45 | 15 - 40 | 2300*2300*6500 | 1100 |
| 5LL-1500 | 1500 | 800/680/540 | 4 | 0.8 - 0.037 | 30 - 60 | 6 - 8 | 1560*1560*5230 | 800 |
| 5LL-1200 | 1200 | 720/540/360 | 4 | 0.3 - 0.03 | 25 - 35 | 4 - 6 | 1360*1360*5230 | 600 |
| 5LL-900 | 900 | 660/540/400 | 4 | 0.2 - 0.02 | 25 - 55 | 2 - 3 | 1060*1060*4000 | 400 |
| 5LL-600 | 600 | 450/360/270 | 2 | 0.2 - 0.02 | 25 - 55 | 0.4 - 0.8 | 700*700*2600 | 150 |
