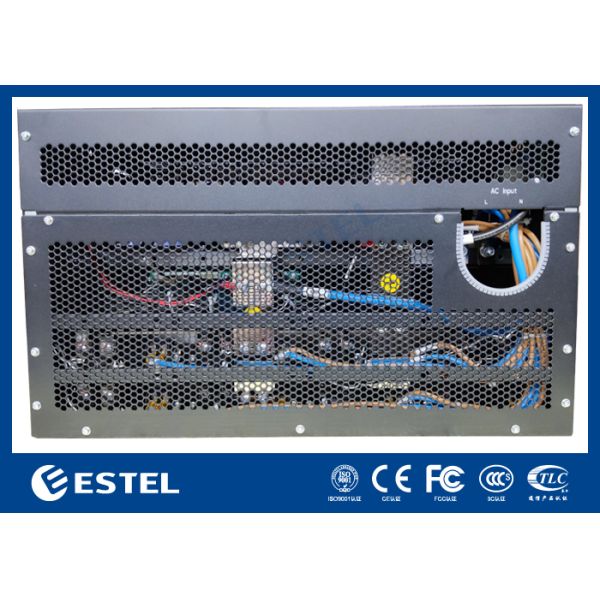

    6U Telecom DC48V Integrated Rectifier Power System with Remote Control

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET48400-M5E86B
    Certification : CE UL FCC
    Price : USD500-USD5000
    Payment Terms : T/T
    Supply Ability : 5000set per month
    Delivery Time : 25~35 days
    • Product Details
    • Company Profile

    6U Telecom DC48V Integrated Rectifier Power System with Remote Control

    6U Telecom DC48V Integrated Rectifier Power System with Remote Control


    Product Overview of 6U Telecom DC48V Integrated Rectifier Power System


    Engineered for demanding telecommunications, data center, and industrial applications, the ET48400-M5E86B DC Rack Power System delivers resilient, high-capacity DC power. It accepts a 380VAC three-phase input, providing a stable, adjustable output from –43VDC to –58VDC (typically –53.5VDC) at a maximum capacity of 24kW and efficiency exceeding 96%.

    The modular design supports N+1 redundancy with up to eight 3000W rectifier modules, each offering high-efficiency conversion with a power factor ≥0.99 and THDi ≤5%. Housed in a service-optimized 6U chassis with front access and top-panel cabling, the system simplifies installation and maintenance. Its DC distribution panel includes 4*100A/1P battery circuit breakers, scalable LLVD, and BLVD for flexible power management.

    A dedicated controller with analog/digital inputs and configurable alarm relays, alongside RS232/485 and SNMP interfaces, provides comprehensive local and remote monitoring. Designed to operate reliably in extreme environments (–40℃ to +65℃, up to 95% RH, 3000m altitude), this system offers a robust and scalable power foundation for critical infrastructure.


    System of 6U Telecom DC48V Integrated Rectifier Power System

    • Dimension: 482.0(W) × 350.0(D) × 6U(H)

    • Weight: ≤25kg (without rectifiers)

    • Cooling mode: Natural cooling

    • Installation mode: Installed on 19-inch rack or inside the cabinet

    • Cabling mode: Top inlet and top outlet

    • Maintenance mode: Front maintenance, support module grade change

    • Protection level: IP20


    Environment of 6U Telecom DC48V Integrated Rectifier Power System

    • Operating temperature: –40℃ ~ +65℃ (full output below 50℃)

    • Storage temperature: –40℃ ~ +70℃

    • Operating humidity: 5% ~ 95% (non-condensing)

    • Altitude: 0 ~ 3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)


    Power Distribution of 6U Telecom DC48V Integrated Rectifier Power System

    AC
    Distribution

    Input mode


    Three-phase 380V 3*63A/1P+N
    Input frequency45~65Hz, rated value: 50Hz/60Hz
    AC SPD20kA/40kA, 8/20μs
    DC
    Distribution
    Output voltage-43~-58VDC, rated value: -53.5VDC
    Maximum capacity24kw(8*3kw, N+1 redundancy)
    Battery breakers4*100A/1P
    Load breakers

    LLVD*2: Used with distribution box

    BLVD: 4*16A/1P+4*10A/1P

    DC SPD10kA/20kA, 8/20μs
    RectifierInput voltage85VAC~300VAC, rated 220VAC
    Efficiency>96%
    Rated power3000W(176~300VAC)
    Working temperature-40℃~+75℃(fully output below 50℃)
    Dimension106.5mm(W)×286mm(D)×41.5mm(1U/H)
    Weight≤2kg
    Cooling modeForced cooling
    Power factor≥0.99
    THD≤5%
    DC output–43 ~ –58VDC, rated –53.5VDC, maximum 55A
    ControllerControllerMC2600
    Signal input2 AI(3ambient temp, 1 humidity) ,8 DI
    Alarm output8 dry contact
    RS485Supported
    SNMPSupported
    Display modeLCD

    Structure of 6U Telecom DC48V Integrated Rectifier Power System
