    IGBT 1-15Khz Digital Medium Frequency Induction Heating Machine 500KW Hot Forging Machine
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging MachineIGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging MachineIGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine


    Main Features:
    1.This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infieneon IGBT type.
    2. Using advanced digital control technology and digital phase-locked loop tracking technology and computer control technology, the system structure is safe and reliable, stable performance and simple operation.
    3. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
    4. The heating speed is fast and the heating efficiency is high. It can control the heating temperature and time conveniently, and it is easy to ensure the heating quality and the running water operation.
    5.Visual digital display of voltage, current, frequency, power, heating time, and heating temperature,etc.
    6.Can Predictable power, that is the power can be set before heating is turned on, with high accuracy. This function is not available for other similar products in the market.
    7. Friendly man-machine interface:
    Human-computer interaction can choose a variety of ways, such as LED indicator or digital tube display, touch screen display and control, text screen display, customers can choose at will according to their needs; from the function realization and operation settings, it covers the traditional mechanical button panel, making the operation and maintenance easier, more intuitive and more convenient;
    8. Hardware isolation interface:
    It can be compatible with the existing PLC on the market, and is conducive to the functional transformation of the existing PLC system and the further expansion of the automation system.
    9.Remote communication interface:
    10. The device is equipped with a striking red emergency stop button, which can be pressed quickly when an emergency occurs.
    Stop the equipment immediately to achieve protection measures.
    11. Reasonable layout of the internal components of the equipment, the main control circuit board is centralized on the weak side to avoid the interference of the strong current to the control circuit and improve the control accuracy.
    12. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution.

    Technical Parameters:
    ModelDSP-MF-500KW
    work power380V*3phase 50HZ-60HZ
    input current750A
    Output Current1000A
    DC Voltage500V
    Fluctuating output power500KW
    fluctuating frequency1-15KHZ
    the flow rate of cooling water0.15-0.3Mpa
    water temperature protection point50C
    product size1250*900*2040MM
    net weight480KGS

    Application:
    Heating (hot forging, hot fitting and smelting):
    1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.

    2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.

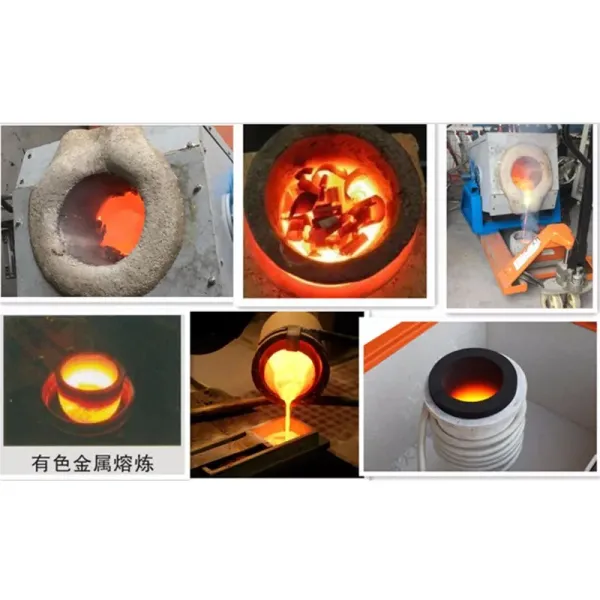

    3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine


     TypeDSP-400KW
     Work Power 3*380v/415v/440v/480v  50-60hz
     The range of operating voltage 340-430V AC
     Output power 400KW
     Input current 600A
     Fluctuating frequency 10-40khz or 1-10KHZ
     Timing (Heat time,Retain time,Cool time) 1-9999S
     The flow rate of cooling water 0.15 Mpa 25L/Min
     Water temperature protection point 40centidegree
     Duty cycle 100% (40degree room temperature)
     Weight Approx:650kg
     SizeMain Parts:800*1000*1800MM
    Transformer: 850*650*700MM
    Packing:
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine
    IGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging MachineIGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging MachineIGBT 1-15kHz 500kw Digital Medium Frequency Induction Heating Machine Induction Hot Forging Machine
    Pre-sale service:

    1. recommend the most suitable machine for customers, according to their requirements.
    2. Inquiry and consulting support.
    3. Sample testing support.
    4. View our Factory.

    In-sale service:
    1. Strictly manufacture the machine, according to relevant technical standards.
    2. Take run test, according to relevant equipment test run regulations.
    3. Strictly check up the machine, before delivery
    4. Delivery on time.

    After-sale service:
    1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
    2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
    3. If any big quality problems occurs out of the guarantee period, we will send maintenance
     technician to provide visiting service after checking with the customer and charge for a favorable price.
    5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
    6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
