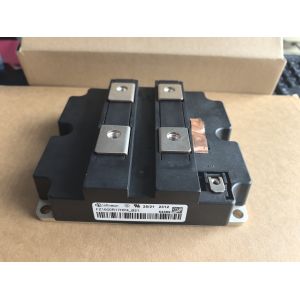

FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar

    Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers

    Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers
    • Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers
    • Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers
    • Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers
    • Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers
    • Buy cheap FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar from wholesalers

    FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar

    Ask Lasest Price
    Brand Name : Infineon
    Model Number : FZ1600R17HP4B21BOSA2
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar

    FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar


    Features

    • 4 kV AC 1min insulation

    • AlSiC base plate for increased thermal cycling capability

    • Package with CTl>400

    • High creepage and clearance distances

    • High power and thermal cycling capability

    • High power density

    • IHM B housing


    Applications

    • Resonant inverter applications

    • High power converters

    • Traction drives

    • Wind turbines


    Description

    The FZ1600R17HP4B2 is a high-power IGBT module designed for demanding industrial applications. It is built on advanced IGBT technology, offering a high current rating of 1600A and a voltage class of 1700V. This module is engineered for high efficiency, featuring low collector-emitter saturation voltage (Vce(sat)) and low switching losses, which enables high-frequency operation and superior power density in system design. Its robust construction and high Safe Operating Area (SOA) ensure maximum reliability and long-term performance under strenuous conditions.


    INFORMATION

    Category
    Manufacturer
    Infineon Technologies
    Series
    Packaging
    Tray
    Part Status
    Active
    IGBT Type
    Trench Field Stop
    Configuration
    Half Bridge
    Voltage - Collector Emitter Breakdown (Max)
    1700 V
    Current - Collector (Ic) (Max)
    1600 A
    Power - Max
    10500 W
    Vce(on) (Max) @ Vge, Ic
    2.25V @ 15V, 1600A
    Current - Collector Cutoff (Max)
    5 mA
    Input Capacitance (Cies) @ Vce
    130 nF @ 25 V
    Input
    Standard
    NTC Thermistor
    No
    Operating Temperature
    -40°C ~ 150°C
    Mounting Type
    Chassis Mount
    Package / Case
    Module
    Supplier Device Package
    Module
    Base Product Number

    Drawing
