Customizable High Speed 700T Aluminum Extrusion Machine

Name: Customizable High Speed 700T Aluminum Extrusion Machine
Brand: Huanan
Price: 89800 USD

Ask Lasest Price
Brand Name :	Huanan
Model Number :	HN-700T
Certification :	ISO
Price :	$89800-$106000
Payment Terms :	LC,T/T
Supply Ability :	5pcs/ 2 Months
Delivery Time :	3 Months

Add to Cart

Product Details
Company Profile

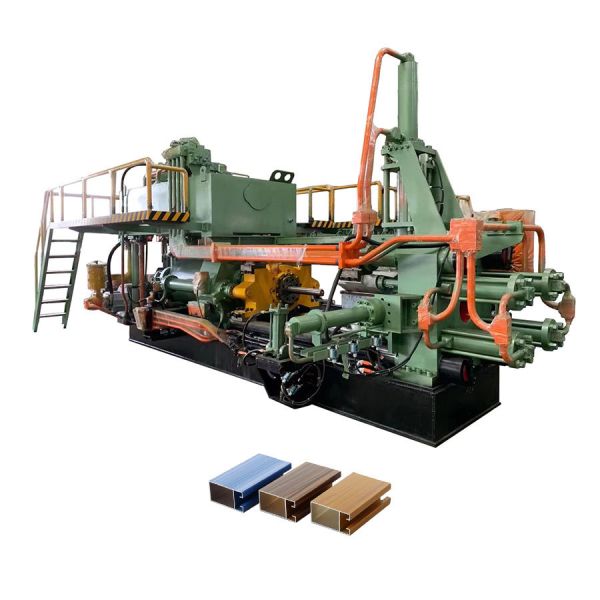

Customizable High Speed 700T Aluminum Extrusion Machine

The 700T Customized Type Aluminum Extrusion Machine Press Extruder is a heavy-duty industrial machine designed for shaping aluminum alloys into specific profiles by forcing heated aluminum billets through a die under high pressure. The "700T" indicates a 700-ton pressing capacity, which determines the machine's ability to handle large or complex extrusion profiles.

Product Specifications

Attribute	Value
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Parameter	Value
Standard Billet Size	Outer diameter: Φ100mm Length: 550mm
Extrusion capacity	Machine extrusion force: 22Mpa 729.7T(802UST)
Dimensions of mold base cavity	Diameter: Φ220mm Depth: H250mm
Equipment dimension	Mechanical size: L7950mm×W3200mm×H3550mm Overall weight: 33T Total Power: 103KW
Motor	Main oil pump: (Hilectro brand) HP12981-G102W-R1P4 Liquid cooling driver: Hi300-90KW
Hydraulic pump	Main oil pump: (Germany Rexroth) A15VSO210 variable pumps Auxiliary pump: (Tokyo Keiki) SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke is shorter than conventional extruders, with reduced frame opening for higher rigidity (30% higher than traditional extruders)
Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while reducing energy consumption
Eliminates gasket circulation system, reducing reactive operation time and power consumption (non-extrusion time reduced by 15%)
Servo motor-driven translation manipulator further reduces non-extrusion time by 15%

1000T Hydraulic Aluminum Extrusion Machine in operation showing the extrusion process

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles are used in roofs, walls, doors and windows, frames, structural components, glass curtain wall support systems, and various decorative elements in industrial and civil buildings.

Hydraulic Aluminum Extrusion Press machine overview showing complete machine assembly

Technical Characteristics

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage risk
Fast response with high efficiency and short non-extrusion time
High precision with extrusion speed control (±0.1mm)
High automation level with intelligent production reduces operator requirements

Product Images

Hydraulic Aluminum Extrusion Press Machine detailed view showing component arrangement

Workshop showing Hydraulic Aluminum Extrusion Press Machine installation in industrial setting

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan reaches 15+ years, with many well-known aluminum manufacturers as our customers.

Q2: How to choose the right type machine?

Provide your product profile sectional drawing dimensions, and we'll calculate the suitable machine size for your needs.

Q3: Will Huanan provide installation service?

We send technicians to install the machine and train your employees on proper operation when installation conditions are met.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days; 1250-1800MT: 45-60 days; 2000-3000MT: 180 days; 3000MT+: 6-12 months. Complete production lines require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive one-station services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
