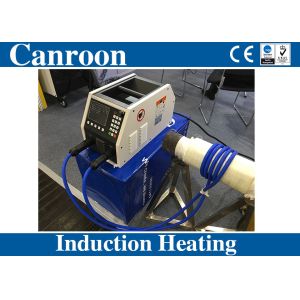

380V 3-Phase Induction Heating Machine For Welding Fabrication
Quick Detail:
Type:Other
Place of Origin:China (Mainland)
Brand Name:Canroon
Model Number:CR2000-080A-14T
Voltage:380V
Current:122A
Rated Capacity:80KW
Rated Duty Cycle:80KW
Dimensions:880*663*982
Weight:201Kg
Usage:induction temperature stress relievers
Certification:CE ISO9001:2008
After-sales Service Provided:Overseas service center available
Process:Induction heating equipment
Input Power:380V,3-Phase
Temperature recorder:6 Channel temperature recorder
Description:
The CR2000 induction preheater is an advanced air-cooled heating
system designed for welding preheat and industrial fabrication.
Capable of reaching temperatures up to 1450°F, it delivers rapid
and uniform heating through multiple output channels and six
control thermocouples. Compared with conventional heating methods,
the CR2000 achieves significantly faster heat-up times and higher
process efficiency.
The system features an intuitive operator interface that supports
programmable ramp-up and hold cycles, enabling precise temperature
control for various applications. It also provides guided operation
to help users maximize coil performance and ensure consistent
heating quality across different workpieces.
Applications:
With the introduction of theInduction Heating Machine, this simple
and cost-effective heating process can be applied in the following
applications to deliver fast and consistent heat:
- Welding fabrication and construction;
- Preheating of welds;
- Post-weld heat treatment;
- Coating removal;
- Shrink Fit and so on
Specifications:
Input Amperes at Rated Output | 380V:122A |
Thermal conversion efficiency | More than 90% |
Maximum Rated output | 80KW |
Cooling Mode | Air cooled |
Input Power | 380V 3-Phase,50HZ |
Rated Output | 80KW at 100% duty cycle,1-35KHZ |
TC input | 6 circuit |
Digital Recorder | Optional |
Control Model | Digital Control |
Resonance | Series Resonance |
Temperature | Max 1450°F |
Dimensions | H:880MM W:663MM D:982MM |
Transportation | By sea or By Air |
Weight | 201KG |
Warranty | 12 Months |
Competitive Advantage:
Versatile Mobility: Optional running gear enables easy movement across construction,
welding, and maintenance sites.
Integrated Temperature Control: Supports both manual and temperature-based programming through a
simple, intuitive operator interface.
Multiple Thermocouple Inputs: Allows precise control by regulating heating based on the hottest
TC and cooling based on the coolest TC for consistent process
stability.
Uniform Heating Quality: Ensures stable and evenly distributed heat throughout the entire
zone, improving weld quality and process reliability.
Open Output Detection: Prevents operation when an output receptacle is not properly
covered with a cable or protective plug, enhancing system safety.
Isolation Fault Protection: Automatically shuts down the system in case of a ground fault to
protect both equipment and operators.
Low Consumable Costs: No fuel consumption and minimal insulation expenses. Reusable
insulation can be applied 50 times or more, reducing disposal and
replacement costs.
Consistent, Non-Damaging Heating: Induction heats from within the material, maintaining uniform
temperatures without surface damage or overheated spots.
Faster Time-to-Temperature: Achieves quicker heat-up than conventional methods due to the
efficient induction heating process, reducing cycle time.
Improved Working Environment: Eliminates exposure to open flames, hot elements, or explosive
gases commonly associated with fuel-gas and resistance heating.
High Energy Efficiency: Over 90% efficiency transfers more energy directly into the part,
shortening heating times and improving power utilization.
Easy Setup: Preheat blankets or flexible induction cables, combined with
user-friendly insulation blankets, simplify installation and
operation.
