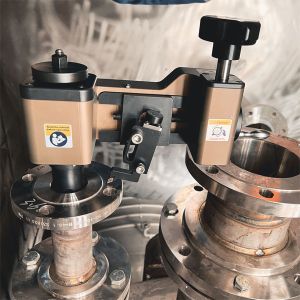

FI14M Manual Flange Facing Machine – Portable Flange Resurfacing
Tool
The FI14M Manual Flange Facer is a heavy-duty, field-ready tool
engineered for quick and accurate flange resurfacing. Built for
technicians who need a dependable solution in locations where power
is limited or unavailable, this compact machine restores worn,
pitted, or corroded flange gasket faces to a clean, uniform sealing
surface. Its completely manual drive system allows operators to
perform precision machining work anytime, anywhere—whether on-site
at a plant, out in the field, or inside a workshop.
SPECIFICATIONS
| Model: | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2–355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2–270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
KEY FEATURES
Power-Free Operation
The FI14M is completely self-sufficient, enabling safe and reliable
flange machining in remote sites, offshore platforms, shutdown
areas, or restricted zones where powered equipment is not allowed.
Precision Spiral Serration Finish
Its smooth mechanical swing arm delivers consistent phonographic
serrations that meet ASME B16.5 surface finish requirements,
ensuring optimal gasket sealing performance.
Rapid, Accurate Set-Up
MT’s fast-locking internal clamping system centers securely inside
the flange bore, allowing operators to begin machining within
minutes.
Rugged, Long-Life Construction
Manufactured from high-strength alloys and CNC-machined components,
the FI14M is designed to withstand harsh industrial environments
and long-term repeated use.
Portable Service Kit
Packaged in an organized, shock-resistant case, all parts and tools
are stored neatly for convenient transport to any job site.
Ready to Use Immediately
Delivered fully assembled with all accessories needed for flange
facing—no additional tools required.
Product Advantages
Instant On-Site Flange Restoration
Reduce costly downtime by machining the flange in place rather than
removing or replacing it.
Lightweight & Easy to Handle
Its compact footprint and low weight make it ideal for tight
spaces, overhead positions, and vertical flanges.
Stable Cutting Performance
Provides smooth and consistent cutting action across various metals
used in pipelines, processing plants, shipyards, chemical
facilities, and power stations.
Lower Maintenance Costs
Extend equipment life and improve sealing reliability without the
expense of purchasing new flanges or outsourcing repair work.
Why Choose the FI14M?
The FI14M Manual Flange Facing Machine is engineered for
professionals who demand accuracy, portability, and reliability.
Built for challenging on-site conditions and backed by MT’s
engineering quality, this manual flange resurfacing tool ensures
every flange sealing face meets industry standards—every single
time.
FLANGE FACER MACHINE SELECTION TABLE
Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
FI14M | 1.07" to 14" (27.2–355.6 mm) | 1.07" to 10.63" (27.2–270 mm) | Manual |
FE12P | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Pneumatic (1.0 kW) |
FE12E | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Electric Servo motor (1.0 kW) |
FI26P | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Pneumatic (1.0 kW) |
FI26E | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Electric Servo motor (1.0 kW) |
FI40P | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Pneumatic (1.7 kW) |
FI40E | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Electric Servo motor (1.5 kW) |
FI60P | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Pneumatic (3.0 kW) |
FI60E | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Electric Servo motor (3.0 kW) |
FI80P | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Pneumatic (3.0 kW) |
FI80E | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Electric Servo motor (3.0 kW) |
