    Plastic High Voltage electrical connectors Busbar EV plug and socket 2PIN 2.5mm 4.0mm 6.0mm 10.0mm IP67 HV Automotive Connector

    Ask Lasest Price
    Brand Name : UPE
    Model Number : New Energy & Storage Connector Series
    Certification : CE, RoHS, REACH
    Price : $2-$4
    Payment Terms : T/T
    Supply Ability : 10KPCS/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Plastic High Voltage electrical connectors Busbar EV plug and socket 2PIN 2.5mm 4.0mm 6.0mm 10.0mm IP67 HV Automotive Connector

    Plastic High Voltage electrical connectors Busbar EV plug and socket 2PIN 2.5mm 4.0mm 6.0mm 10.0mm IP67 HV Automotive Connector

    UPE company is a modern enterprise dedicated to the research and development, production and sales of industrial connectors for ten years. Since its establishment, it has continuously adopted sincere suggestions from customers in various industries and has continuously absorbed international advanced technology and design philosophy, through the hard work of our R&D team, customer-oriented, provide personalized solutions, continuous product innovation, and obtain a number of patents and certifications.

    We sincerely look forward to cooperating with new and old customers, mutual benefit and win-win, improve the level of the industry, create a better future.

    Our core value focuses on performance reliabilities and customer satisfaction.
    We strive to be the an cost effective manufacturer for industrial connectors and cables.
    -The ISO9001:2015 quality management system is a proven tool employed internationally to address such requirments.

    -All our products are developed and delivered according to international standards, such as CE, UL, IEC, Rohns and Reach.


    Product Advantages:

    Temperature:-55℃-125℃
    Rated Current:60A
    Insulation Resistance:5000MΩ
    Dielectric Withstand Voltage:3000V DC

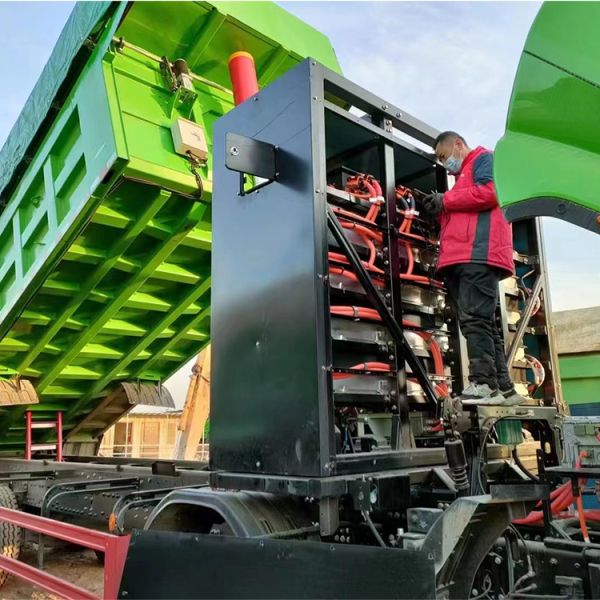

    Application: New Energy Vehicles, New Energy Industry, Energy Storage


    Product Details

    SeriesConnector TypeNumber of PositionRated CurrentCable sizeHV InterlockShield function
    KRX12Plug/Socket1150A25A/35A/50mm²NoNo
    KRX16Plug/Socket1/260A
    2.5/4/8/10
    mm²
    OptionalOptional
    KRX17
    Plug/Socket2120A16/25mm²OptionalOptional
    KRX20
    Straight plug / Elbow plug/Socket
    2/3200A
    25/35/50
    mm²
    OptionalOptional


    tem
    value
    Place of OriginGuangdong,China
    Model NumberKRX16*-2X04TK-**
    TypeDC power plug
    ApplicationPower, PDU / Battery / Motor / Motor Controller
    GenderMale and Female
    Life500 times
    Warranty12 months
    CertificateISO9001:2015, CE, RoHS
    Temperature:-55℃∽ +125℃
    Salt Spray96 hours
    Color
    Orange

    Production flow:

    xx

    xx

    Packaging:xx
