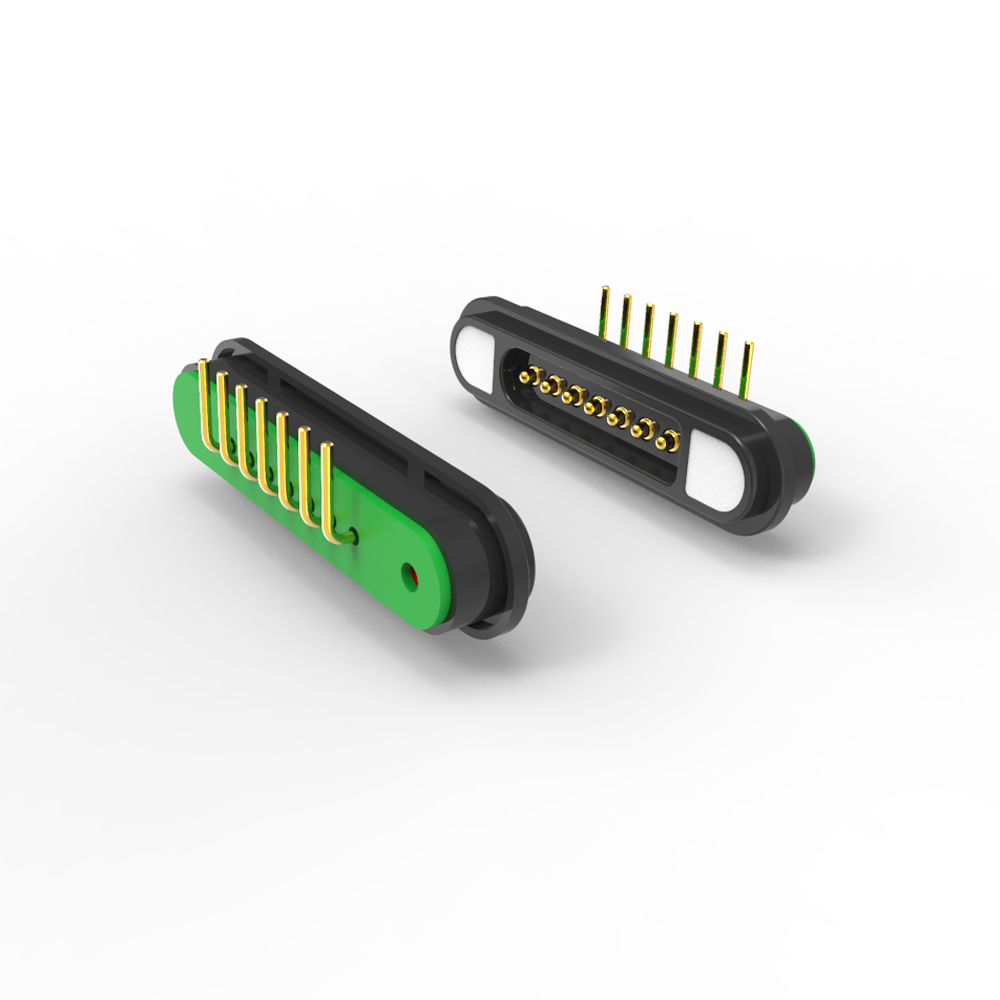

Right angle 7 pin pogo magnetic connector male and female spring pin connector

Right angle 7 pin pogo magnetic connector male and female spring pin connector.

UPE is a professional manufacturer of customized magnetic connector, our design always meet different needs of customers, the magnetic connector is widely used for Medical equipment, wireless equipment,Smart device and smart home,data communications

Key Specifications:

Continuous Working Current: 5A

Voltage Rating: 12V

Pitch: 2.2mm (compact spacing for dense PCB layouts).

Pin Number: 7-pin (male + female pair).

Right-Angle Design: Saves space in tight enclosures.

Pogo Pin Contacts: Spring-loaded for reliable, low-resistance connections.

Gender: Male and female versions available (mating pair).

Magnetic attraction force between the male and female docking interfaces of 7pin right angle magneti connector is >450 grams (g),, which is critical for stable connections in high-vibration or portable applications. The male female magnetic connector is use N52-grade neodymium magnets, N52 is the highest grade of commercially available neodymium magnets,it is high-performance permanent.

7pin magnetic connectors parameter:

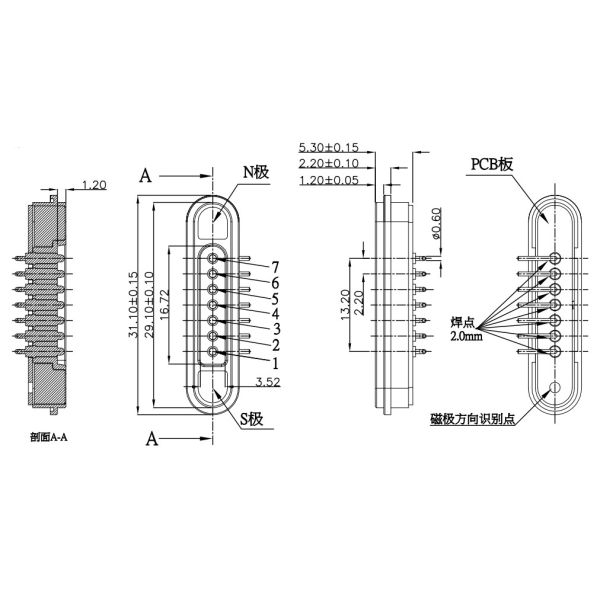

7pin male right angle magnetic connectors:

7pin female right angle magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector
.Humanize design of automatic adsorption connection experience.
.Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device.
.Life time: up to 100,000-200,000 cycle.
.Waterproof design: the female end of the device can be dustproof and waterproof (IPX8).
.Fast charging time: 5A-10A magnet connector design withstands large current transmission.
.The appearance of the magnetic connector can be matched according to the design of the customer's application device.
.Product anti-short circuit structure design and foolproof.
.Realize high frequency signal transmission, can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission.

Why do customers choose US?

1.Customization & Flexibility

2.Fast Samples = Faster Time-to-Market

3.Every connector undergoes rigorous quality checks

Incoming Material Inspection

In-Process Quality Checks

100% Final Testing

Traceability & Compliance

4.Customer-Focused QC Flexibility

5.Real-Time QC Collaboration

Magnetic connectors application:

We can provide design service

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Pakaging & shipping
