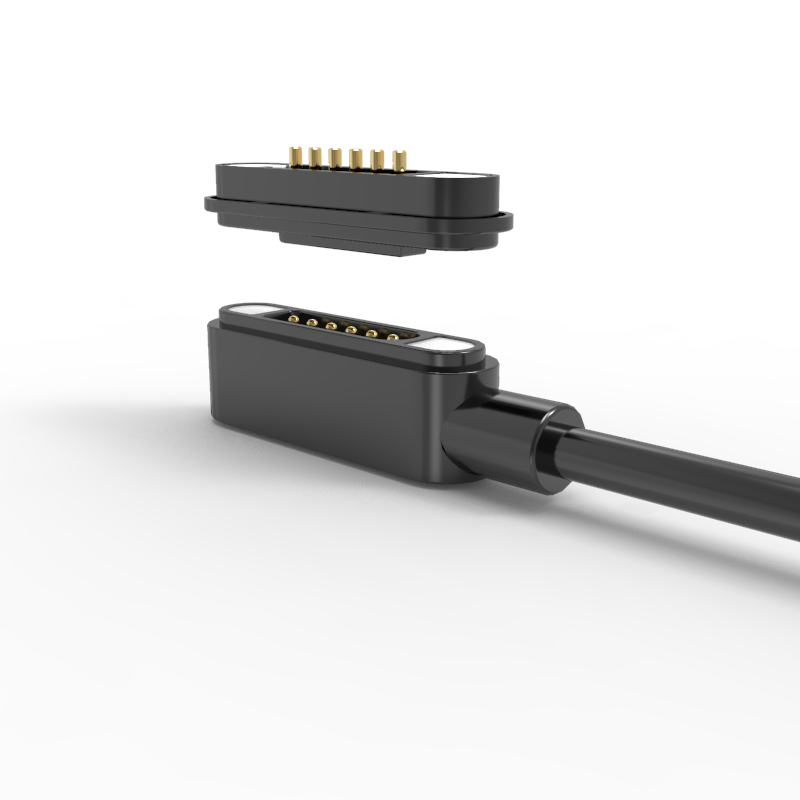

Male magnetic cable connector 6pin charging USB connector for electronic device

Male magnetic cable connector 6pin charging USB connector for electronic device

6-pin magnetic cable connector is a type of electrical connector that uses magnets to securely attach and detach easily. These magnetic cable connector are commonly used in consumer electronics, such as laptops, tablets, and other portable devices, for charging or data transfer.

Key Features of a 6-Pin Magnetic Cable Connector:
Magnetic Attachment – The connector snaps into place via magnets, reducing wear and tear on the port.

6 Pins – Provides multiple contact points for power delivery, data transfer, or other functions (e.g., USB, charging, audio).

Reversible/Non-Directional – Some magnetic connectors are designed to work in any orientation.

Safety – Detaches easily when pulled, preventing damage from tripping over the cable.

Durability – Reduces physical stress on the device's port compared to traditional plugs.

6Pin Magnetic Cable Connectors Parameter:

6Pin Male Cable Connector Technical Drawing (Key Dimensions):

6Pin Female Magnetic Connector Technical Drawing (Key Dimensions):

Advantages of Magnetic Connector
1.Humanize design of automatic adsorption connection experience.
2.Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device.
3.Life time: up to 100,000-200,000 cycle.
4.Waterproof design: the female end of the device can be dustproof and waterproof (IPX8).
5.Fast charging time: 5A-10A magnet connector design withstands large current transmission.
6.The appearance of the magnetic connector can be matched according to the design of the customer's application device.
7.Product anti-short circuit structure design and foolproof.
8.Realize high frequency signal transmission, can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission.

Magnetic Connector Products Application
Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection.
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, Automation and industrial equipment, audio-visual equipment.
Aviation, aerospace electronic, military communication.
Automotive, car navigation, test and measurement equipment.
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products and many other electronic fields.)

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
