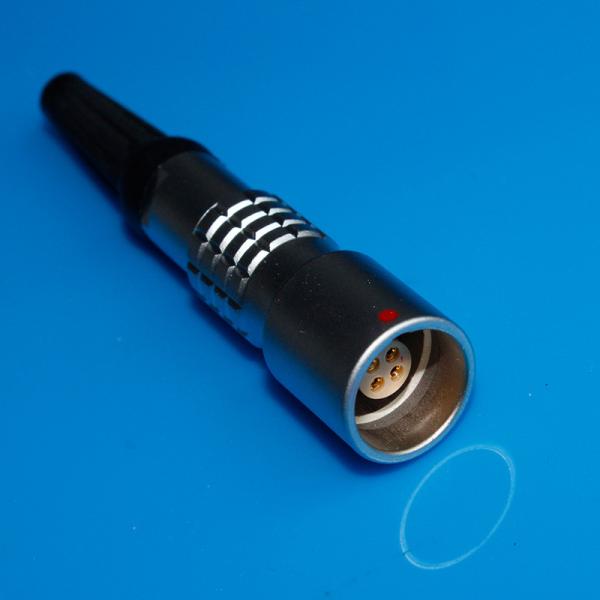

4pin PHG Female Connector Lemo 1K Size

4pin PHG female connector Lemo 1K size waterproof circular connectors cable welding female plug

• Termination type : Female solder
• IP rating: IP68
• Matching parts: FGG.1K.304.CLAC30
• Shell Style/Model:PH*: Free receptacle, cable collet
• Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
• Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration:1K.304 : 4 Low Voltage
• Contact Type: Solder
• Max. Matings: 5000
• Contact Dia.: 0.9 mm (0.035in)
• Bucket Dia.: 0.8 mm (0.031in)
• Max. Solid Conductor: 0.34 mm^2 (AWG 22)
• Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
• R (max): 4.8 mOhm
• Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
• Vtest (contact-contact): 1350 V (AC), 1910 V (DC)

• Medical
• Defense Security
• Instrumentation
• Transportation
• Industry
• Energy
• Broadcast
• Audio/video

• C45: OD=4.1---4.5mm
• C50: OD=4.6---5.0mm
• C55: OD=5.0---5.5mm
• C60: OD=5.6---6.0mm
• K70: OD=6.6---7.0mm

Ebuddy Technology Co., Ltd. was founded in 2015, is a high-tech enterprise integrating R&D, production and sales. Ebuddy focuses on high precision push-pull connector and cable assembly solutions. The products and services cover Mininature connector(M6-M18), Metal connector, plastic medical connector, waterproof connector, cable assembly , widely used in kinds of harsh environment and applications.

Through good quality, competitive price, stability products and appearance design capabilities, we constantly use advanced technology to meet the diverse needs of customer. At the same time, the company exerts its advantages in the custom cable assembly sulotions, gathers more technology and wisdom power, and constantly develops and innovates, striving to gradually enter the international market by providing competitive customized connector products and cable assembly solutions.

Ebuddy has rich experience in supplying connectors and custom cables to industrial control devices, medical equipments, measuring and inspecting devices,audio & Visual and military equipments. Ebuddy will provide perfect products and services to partners, work together to explore the market, realize customer value, achieve cooperation, and come up with win-win situation.

Ebuddy sincerely looks forward to more new partners to jointly explore the market, let us work together to create a new history and brilliance in the field of connectors.
