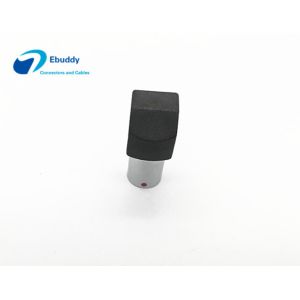

    Buy cheap Print Contact PCB Mount Circular Connector from wholesalers

    Buy cheap Print Contact PCB Mount Circular Connector from wholesalers
    • Buy cheap Print Contact PCB Mount Circular Connector from wholesalers
    • Buy cheap Print Contact PCB Mount Circular Connector from wholesalers

    Print Contact PCB Mount Circular Connector

    Ask Lasest Price
    Brand Name : Ebuddy
    Model Number : EPG.0B.304
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal,Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 5-8workingdays
    • Product Details
    • Company Profile

    Print Contact PCB Mount Circular Connector


    Printed Circuit Board connector Lemo EPG PCB right angle solder socket


    Main features:

    • Printed Circuit Board connector Lemo EPG PCB right angle solder socket
    • Keying: 1 key (alpha=0)
    • Pins: 2/3/4/5/6/7/8/9/10/12/14/16
    • Size: 0B 1B 2B
    • Termination type: Female print PCB
    • Totaly compatible Lemo EPG, good quality with Endurance 5000 mating cycles
    • Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.

    Contacts No.:
    • 00B sizes: 2, 3 and 4
    • 0B sizes: 2 3 4 5 6 7 and 9
    • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
    • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

    PCB Board drilling figure

    If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.


    Insulating washer(color wheel):

    • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
    • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
    • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size


    Size and drawing:

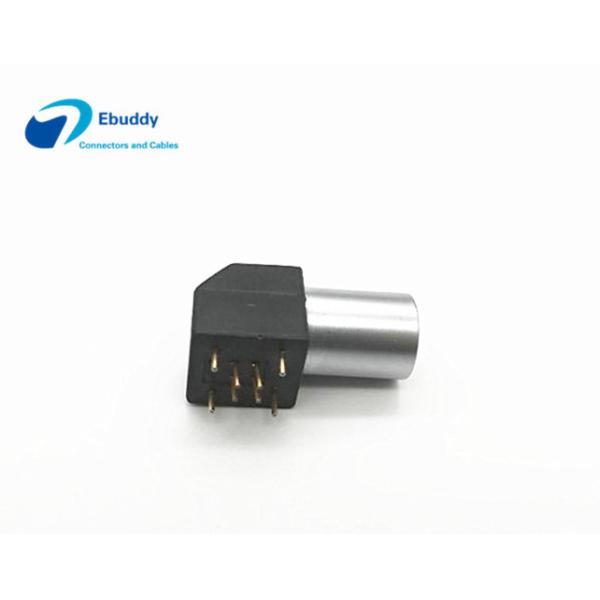

    Quality Print Contact PCB Mount Circular Connector for sale
