High Frequency Welded Pipe Mill 2.0-10.0mm

High Frequency Welded Pipe Mill 2.0-10.0mm

Product Specifications

Attribute	Value
Product Name	High Frequency Welded Pipe Mill HGF 150X10 7.5" HF Welded Tube Mill 70x70-150x150mm
Tensile Strength	σb≤520 Mpa
Pipe Size Range	70x70-150x150mm
Thickness	2.0-10.0mm
Max Production Speed	20～50m/min
Fixed Cutting Length	6-15m
Warranty	One Year
Welding Type	High Frequency Welding

Product Overview

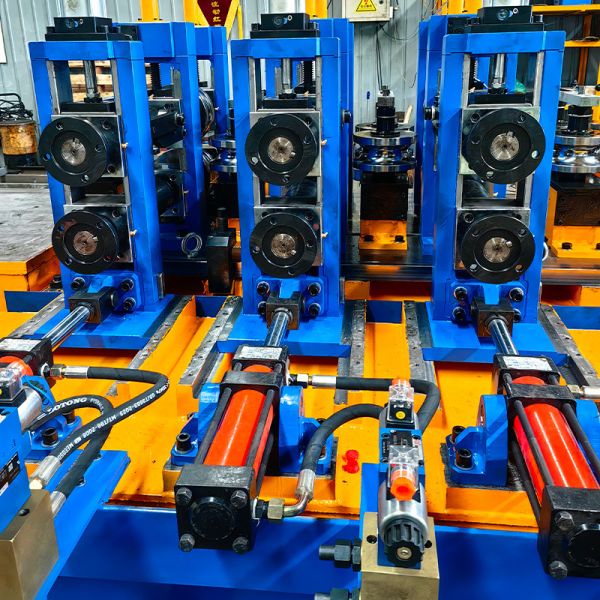

The HG254 high precision high frequency welded pipe production line is designed for manufacturing square pipes (70x70-150x150mm) and round pipes (φ89-φ190mm) with thickness ranging from 2.0-10.0mm. This advanced production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control for optimal operation and maintenance.

Key Features

• Pipe diameter tolerance: ±0.1mm
• High frequency welder power: 600KW
• Maximum coil weight: 15,000Kg
• Steel strip width: 280-600mm (±0.2mm)
• Production speed: 20-50m/min
• Cutting precision: ±2mm

Production Process

1. Raw material (strip)
2. Uncoiler
3. Cutting and Welding
4. Feeding
5. Storage material
6. Passive leveling
7. Forming rolling
8. High frequency welding
9. Remove weld burr
10. Cooling
11. Sizing
12. Coarse straightening
13. Length cut
14. Collection

Main Equipment

1. Loading Car

Coil Outer Diameter	Φ1200-2000mm
Strip Width	280-600mm
Max Strip Weight	15.0 TON
Speed	5m/min

Precisely positions steel coils onto the uncoiler mandrel using lift oil cylinder.

2. One Mandrel Hydraulic Uncoiler

Coil Outer Diameter	Φ1200-2000mm
Coil Inner Diameter	Φ508mm~Φ760mm
Strip Thickness	2.0-10.0mm
Drive Motor	4kw, 380V

3. Pinch Leveling Machine

Leveling Motor	15KW
Pinch Roll Diameter	Φ210x900mm (40Cr material)
Leveling Width	280-600mm
Speed	0-11M/Min

4. 600KW High Frequency Welder

Includes switchgear rectifying cabinet, inverter output cabinet, console with PLC, connecting optical fiber, 3-D positioning table, air conditioner, and water-water cooler.

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.

Hebei tengtian welding pipe equipment manufacturing co., ltd. is a leading domestic professional

manufacturer of welding pipe forming machinery and related products. With more than ten years

of ERW pipe production experience, the factory covers an area of 50,000 square meters, advanced

equipment, the introduction of advanced modern management system, to ensure the quality of products.
After long-term practice, we have a deeper understanding of users' needs.
With the growth of the enterprise, we can provide all range of welded pipe forming machinery from

single machine to complete the pipe mill production line, we also provide "turnkey engineering"

system solutions for our customers from all over the world, including upgrading the old system,

after-sales service completion, test run and worker training services.
The company adheres to the principle of "quality first, customer first", the products are exported

to South America, southeast Asia, Africa, Europe, Australia, Russia, South Korea and other countries

and regions.
Welcome to our factory, we will provide the most suitable technical solution and the most reasonable

price for our customers.The company has obtained ISO 9001 certification, CE certification and

international BV certification.

If you want to know more about our products, please click on our website.
http://www.ttpipemill.com
