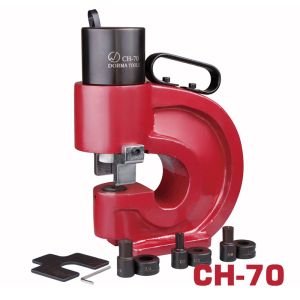

CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets

    Buy cheap CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets from wholesalers

    Buy cheap CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets from wholesalers
    • Buy cheap CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets from wholesalers
    • Buy cheap CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets from wholesalers

    CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : CH-70
    Certification : ISO
    Price : USD150-250/set
    Payment Terms : L/C,T/T,
    Supply Ability : 200 sets/month
    Delivery Time : 7 days after payment
    • Product Details
    • Company Profile

    CH70 Hydraulic Punching Machine with 35T Output and 110mm Depth of Throat for Precise Hole Cutting in Metal Sheets

    CH70 Hydraulic Punching Machine for Metal | Heavy-Duty Hole Cutting Tool


    Overview

    The CH70 hydraulic punching tool is designed for efficient and precise hole punching in metal sheets, plates, and structural components. Equipped with a high-pressure hydraulic system, it delivers strong punching force with minimal effort. Ideal for electrical, construction, and industrial applications, this tool ensures accurate cuts, reduces manual labor, and improves operational efficiency.


    Key Features

    • High-Pressure Hydraulic System
      Provides strong, consistent force for clean and precise holes.

    • Compact & Portable Design
      Lightweight construction for easy handling and transportation on-site.

    • Durable Steel Construction
      Heavy-duty frame ensures long service life even in tough industrial environments.

    • Versatile Punching Capacity
      Suitable for various metals including steel, aluminum, and copper sheets.

    • Ergonomic Operation
      Easy-to-use controls reduce fatigue during repetitive punching tasks.


    Product Advantages

    • Labor-Saving & Efficient
      Hydraulic operation reduces manual effort and increases productivity.

    • High Precision
      Punches clean, accurate holes without deforming the material.

    • Safe & Reliable
      Stable hydraulic system with safety features minimizes risk during operation.

    • Durable & Long-Lasting
      Robust steel body and hydraulic components ensure extended lifespan.

    • Multi-Industry Application
      Perfect for electrical panels, metal fabrication, construction, and industrial maintenance.


    Specifications

    modeloutputapertureconfirgured diesmax.thicknessdepth of throatweightpacking size
    CH-6030T3/8"-3/4"11.1, 14.3, 17.5,20.6mmiron steel-8mm; copper busbar-10mm95mm21kg26*16*39
    CH-7035T3/8"-3/4"11.1, 14.3, 17.5,20.6mmiron steel010mm; copper busbar-12mm110mm37kg33*20*39


    Applications

    • Electrical panel fabrication

    • Metal sheet and plate processing

    • Construction and structural component assembly

    • Industrial maintenance and workshop operations

    • HVAC, plumbing, and metal duct installations


    FAQ

    Q1: What types of metals can the CH70 punch?
    A1: It can punch steel, aluminum, copper, and other metal sheets within its capacity range.

    Q2: Is the tool portable for on-site use?
    A2: Yes, its compact and lightweight design makes it easy to carry and operate on-site.

    Q3: Can I change the punch size?
    A3: Yes, interchangeable punch dies are available for different hole diameters.

    Q4: Is it safe for repeated industrial use?
    A4: Yes, the hydraulic system is designed for continuous operation with safety features.

    Q5: Does it require electricity?
    A5: Depending on the configuration, it can operate with a manual hydraulic pump or electric/hydraulic power unit.
