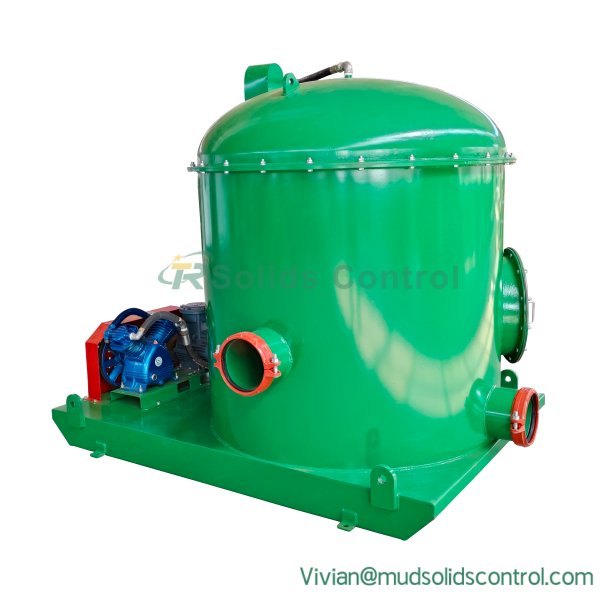

Vacuum Degasser – Advanced Technology for Drilling Mud Gas
Elimination
Product Description
The Vacuum Degasser is an essential solids-control device designed
to efficiently remove dissolved and entrained gases—such as methane, H₂S, and CO₂—from drilling fluids. By creating a negative-pressure environment,
it rapidly separates harmful gases from the mud, stabilizes
drilling-fluid properties, and ensures safe and continuous drilling
operations.
With a compact structure, high processing capacity, and reliable
performance, the Vacuum Degasser is widely used in oil & gas
drilling, geothermal drilling, trenchless construction, and other
demanding mud-treatment applications. Its robust construction and
explosion-proof components make it suitable for harsh and hazardous
work environments.
Features & Benefits
✔ Efficient Gas Removal – Quickly eliminates dissolved gases to restore mud density and
viscosity.
✔ Stable Drilling Fluid Properties – Prevents gas-cut mud and boosts the efficiency of downstream
equipment.
✔ Self-Suction Design – No need for an additional feed pump, simplifying system layout.
✔ High Reliability & Safety – Explosion-proof motor and rugged structure ensure long-term
operation in harsh fields.
✔ Automatic Liquid Level Control – Guarantees consistent performance with minimal manual intervention.
✔ Low Noise & Smooth Operation – Designed with dynamic balance technology for stable and quiet
performance.
✔ Easy Maintenance – Simple internal design decreases downtime and improves service
efficiency.
Technical Specifications
Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
Body Diameter | 700mm | 800mm | 900mm | 1000mm |
Handling Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
Motor Power | 15kW | 22kW | 30kW | 37Kw |
Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
Dimension | 1750*860*1500mm | 2000*1000*1670mm | 2250*1330*1650mm | 2400*1500*1850mm |
Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Technical Advantages
✔ Negative-Pressure Degassing System – Creates a strong vacuum environment that enhances gas separation
efficiency compared to atmospheric degassers.
✔ Self-Priming Capability – The internal vacuum pump draws drilling fluid automatically,
allowing flexible installation and reducing equipment cost.
✔ Optimized Rotor Structure – High-speed impeller increases contact area between mud and vacuum
chamber, maximizing degassing performance.
✔ Corrosion-Resistant Materials – Key components made from wear- and corrosion-resistant alloys
ensure long service life.
✔ Explosion-Proof Motor Options – ATEX/IECEx-certified motors available for hazardous oilfield
operations.
✔ High Capacity with Compact Footprint – Ideal for modern rigs where space and efficiency are critical.
Applications
✔ Oil & Gas Drilling Solids Control Systems
✔ Geothermal and Deep Well Drilling
✔ Trenchless Construction (HDD & Tunneling)
✔ Workover & Well Completion Fluids
✔ Industrial Mud Treatment Systems
✔ Any operation requiring removal of dissolved gases from drilling
fluids
Advantages & Services
✔ Customizable Models & Specifications – Degasser sizes and capacities tailored based on rig flow and mud
properties.
✔ Global Delivery & Full Spare Parts Support – Long-term supply of vacuum pumps, impellers, seals, and control
components.
✔ Professional Technical Support – On-site installation, commissioning guidance, and operator
training.
✔ Durable Construction & Long Service Life – Engineered for continuous 24/7 operation under field conditions.
✔ Integrated Solids Control Solutions – Compatible with shakers, desanders, desilters, centrifuges, and mud
tanks.
Why Drilling Professionals Choose it?
✔ Superior Degassing Efficiency improves mud stability and drilling safety.
✔ Reliable, field-proven design used widely in domestic and international drilling projects.
✔ Self-suction and automatic control reduce system complexity and maintenance.
✔ Built for harsh environments with heavy-duty components and explosion-proof safety.
✔ Excellent service and technical support, ensuring smooth, long-term operation.
