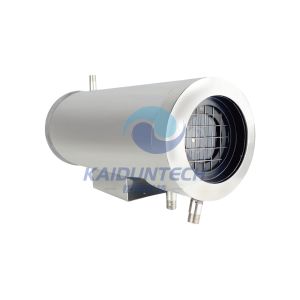

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

    Buy cheap High-temperature Resistant Air-water Cooled Thermal lmaging Camera from wholesalers

    Buy cheap High-temperature Resistant Air-water Cooled Thermal lmaging Camera from wholesalers
    • Buy cheap High-temperature Resistant Air-water Cooled Thermal lmaging Camera from wholesalers

    High-temperature Resistant Air-water Cooled Thermal lmaging Camera

    Ask Lasest Price
    Brand Name : KAIDUN
    Model Number : KDG003
    Payment Terms : T/T
    Supply Ability : 5000 units/year
    Delivery Time : 5-8 week
    • Product Details
    • Company Profile

    High-temperature Resistant Air-water Cooled Thermal lmaging Camera

    High-temperature Resistant Air-waterCooled Thermal lmaging Camera
    Key Features
    • The KDG002 is a High-temperature Camera Equipped with an Air-cooled Dome housing
    • The temperature-measuring lens enables it to have a temperature measurement range of -20°C to 550°C, with a measurement accuracy of +2°C or +2% of the reading (whichever is larger).
    Application Environment

    Metallurgical & Steel Industry


    Power Generation Industry


    Petrochemical & Chemical Industry


    Glass & Ceramic Industry


    Waste Incineration & Environmental Protection

    High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
    Main Features
    MaterialDouble-layer 304/316L Stainless Steel
    Protection ClassIP66
    Working Temperature-10℃~+150℃C/+200℃(with refrigeration tube)
    Working Humidity<95%(non-condensing)
    VideoIP
    Thermal Resolution384*288,640*512 etc
    Pixel Size17μm
    Spectral Range8~14μm
    Comperssed Air Pressure0.2~0.4Mpa
    Compressed Air Flow Rate0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
    Temperature Museurement Range-20°C to 150°C / 0°C to 550°C
    Temperature Museurement accuracy±2°C or ±2% of the reading(whichever is larger).
    VoltageDC12V
    Dimensions360*150*145mm
    Weight≤4.5kg
    MountingStainless Steel Wall-mounted,Pole Installation, etc.
    Dimensions
