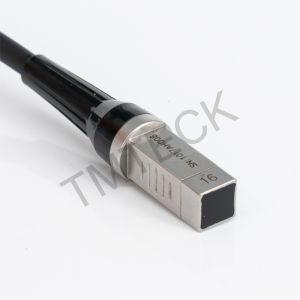

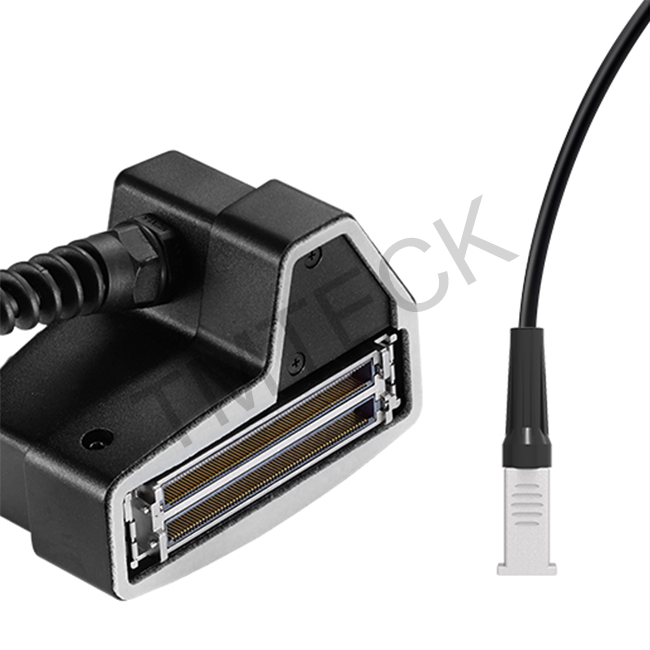

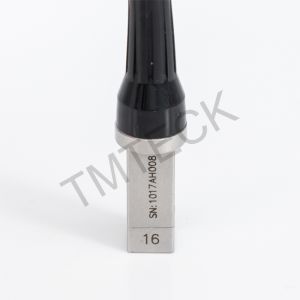

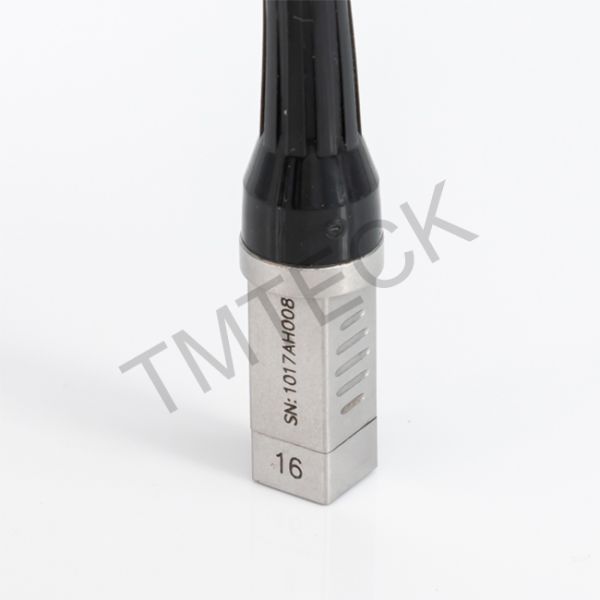

Small-footprint Probe: Smaller size probe with case dimension minimum to 0.31x0.31x0.91
inch, widely used in the aviation field, or some small parts.
Advantages
1.High compatibility, can be compatible with most phased array flaw
detection units.
2. High Performance: Good Pk-to-Pk Sensitivity and SNR, quick to
detect and locate defects.
3.Smaller in Size: Easy to inspect in extremely small space.
4.Wide Application: Widely used in castings, forgings, pipes,
tubes, and machined and structural components for cracks and weld
defects.
5.Multiple cable connection type: Top cable connection or side
cable connection.
Applications
1.Aircraft scratches, rotors, hubs, etc.
2.Detect and quantify defects
3.Inspect castings, forgings, pipes, tubes, and machined and
structural components
4.Cracks and weld defects
Probe Specification
Probe
Series | Model | Compatible Model | Element
Shape | Freq (MHz) | E-Nos | Pitch
(mm) | Active
Aperture (mm) | Elev.(mm) | Size(LxWxH) |
| TS18/A0 | 2.25L10-0.6x6 | 2.25L10-6x6 | Linear | 2.25 | 10 | 0.60 | 6.0 | 6.0 | 13x10x23 (mm)
0.51x0.39x0.91 (in) |
| 5L10-0.6x6 | 5L10-6x6 | Linear | 5 | 10 | 0.60 | 6.0 | 6.0 |
| 7.5L10-0.6x6 | 7.5L10-6x6 | Linear | 7.5 | 10 | 0.60 | 6.0 | 6.0 |
| 10L10-0.6x6 | 10L10-6x6 | Linear | 10 | 10 | 0.60 | 6.0 | 6.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be
customized, including frequency, element number and pitch,
aperture, etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS18/A0 | N0L | 0°LW | -30°~30° | LxWxH:13x10x23(mm)LxWxH : 0.51x0.39x0.91 (in) |
| N45L | 45°LW | 40°~70° |
| N45S | 60°SW | 40°~70° |
| N60S | 60°SW | 40°~70° |
| N60S-IHC | 60°SW | 40°~70° |
| N60S-AOD100 | 60°SW | 40°~70° |
| N60S-IHC-AOD100 | 60°SW | 40°~70° |
