    Right Angle to Straight SATA 7Pin Data Cable Connector – Shielded Serial ATA Wire for HDD / SSD / Server Transmission

    Ask Lasest Price
    Brand Name : ShuangYi
    Model Number : SATA 7P F TO SATA 7P F RIGHT WITH LOCK
    Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959
    Price : $1.44-2.21 PCS FOB
    Payment Terms : T/T
    Supply Ability : 500000 pcs per month
    Delivery Time : 8-15 working days
    • Product Details
    • Company Profile

    Right Angle to Straight SATA 7Pin Data Cable Connector – Shielded Serial ATA Wire for HDD / SSD / Server Transmission

    Product Description

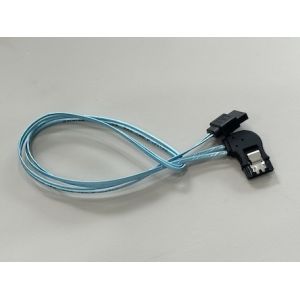

    This right-angle to straight SATA 7Pin data connector cable is designed for compact, reliable signal transmission between drives and host controllers. The blue shielded wire cable uses impedance-controlled copper pairs and full-coverage foil shielding to minimize crosstalk and attenuation, ensuring stable 1.5 / 3 / 6 Gb/s Serial ATA performance in desktop, server and industrial systems.

    One end adopts a 90-degree right-angle SATA male connector with a stainless-steel latch, ideal for drives mounted close to the chassis wall or inside low-profile bays. The opposite straight plug mates directly with motherboard, RAID card or backplane terminals, providing a secure electrical interface for HDD, SSD and other electronic storage devices. This assembly can be tailored as an OEM customization item, including length, jacket color, PCB plug or mixed data-plus-power harness for integrated storage wiring.

    Product TypeHigh-speed SATA data cable connector assembly
    Interface StandardSerial ATA, compatible with SATA I / II / III
    Connector A7Pin SATA male, 90-degree right-angle with metal latch
    Connector B7Pin SATA male, straight plug
    Pin Count7 electronic signal pins per connector
    Contact Pitch1.27 mm differential pair pitch (typical SATA)
    Conductor26/28AWG stranded oxygen-free copper twinax
    Cable StructureIndividually shielded pairs with overall foil shield
    Outer JacketPVC electrical insulation, blue round cable
    Max Data RateUp to 6 Gb/s high-speed transmission
    Characteristic Impedance100 Ω differential (typical)
    Contact MaterialCopper-alloy terminals, nickel underlayer with gold flash
    Housing MaterialUL94V-0 PA / PBT, high-temperature resistant
    Operating VoltageLow-voltage digital signal line
    Operating Temperature-20 °C to +80 °C
    Standard Length0.3 m / 0.5 m (custom length and labeling available)
    ComplianceRoHS / REACH compliant
    Custom OptionsDifferent lengths, colors, straight/angle combinations, bundled harness with power connector or PCB header

    Applications

    Connecting 2.5"/3.5" SATA HDD / SSD to motherboard or HBA in space-constrained cases

    Internal data cabling in 1U/2U rack-mount servers, NAS units and JBOD enclosures

    DVR / NVR, data-logging and automation equipment using SATA headers on PCB backplanes

    Compact industrial PCs and embedded systems where a right-angle SATA connector eases routing along chassis edges

    Custom electronic test fixtures and storage modules requiring flexible, shielded SATA wire cable assemblies

    Precautions

    Check that both mating receptacles are standard SATA 7Pin interfaces; do not force insertion if the connector is misaligned to avoid bending pins.

    Maintain an appropriate bending radius, especially near the right-angle end, to keep controlled impedance and stable high-speed transmission.

    Route the cable away from sharp metal edges and high-current power lines to reduce insulation wear and electromagnetic interference.

    Use cable clips or ties in high-vibration environments so that mechanical stress is not transferred to the SATA terminals or PCB sockets.

    Variants with multi-lane assemblies, additional power connectors, or rugged jackets for automotive and harsh-environment applications can be produced for project and batch orders.
