Product Description

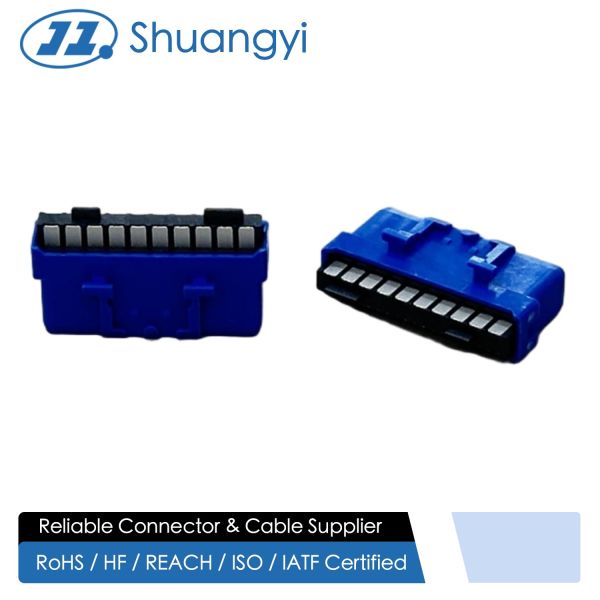

This IDC 20-Pin Dual-Row Fully-Shrouded Male Connector is designed
for reliable PCB-to-wire and PCB-to-PCB electrical interface
applications. The fully-enclosed housing provides enhanced
mechanical protection and ensures secure mating with IDC ribbon
cables. Its 2.00mm pitch, exposed gold-flash terminals, and
reinforced pin structure deliver excellent conductivity, signal
stability, and long-term durability.
The connector is suitable for electronic devices requiring compact,
stable, and high-density pin configurations. Gold-flash plating
improves corrosion resistance, supports consistent transmission
quality, and ensures dependable performance in demanding industrial
environments.
| Connector Type | IDC Dual-Row Fully-Shrouded Male Connector |
| Pin Count | 20 pins (2×10) |
| Pitch | 2.00 mm |
| Mounting Style | Through-hole pin header, solder-type |
| Housing Material | Thermoplastic, high-temperature resistant |
| Contact Material | Copper alloy |
| Plating | Gold-flash (G/F), exposed pin length approx. 3.2 mm |
| Current Rating | 1 A per pin (typical IDC spec) |
| Voltage Rating | 250V AC/DC (typical) |
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Dielectric Withstanding Voltage | 500V AC/minute |
| Durability | ≥ 500 cycles |
| Operating Temperature | −40°C to +105°C |
| Compliance | RoHS, environmental-grade plating |
| Customization | Pin count, plating thickness, housing color, wire termination
available |
Applications
Computer servers and data-storage equipment
Industrial control systems and automation devices
Consumer electronics and smart home products
Automotive electronic modules and dashboard units
Communication devices, routers, network boards
Testing instruments and measurement equipment
Custom wire harness assemblies and PCB assemblies
Precautions
Ensure proper alignment with the mating IDC ribbon cable before
applying pressure.
Avoid excessive bending of the pins during assembly to maintain
signal integrity.
Recommended to follow PCB layout dimensions from the technical
drawing for optimal soldering.
Use in dry environments or ensure proper enclosure protection if
moisture exposure is expected.
For high-current or high-frequency applications, confirm
compatibility with system requirements.
