Product Description

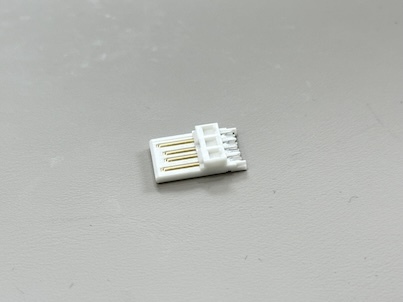

This USB 2.0 AM solder-type connector features a white eco-enhanced
housing with gold-flash plated terminals for stable electrical
performance and excellent corrosion resistance. Designed for
high-quality cable assembly, it offers consistent solderability,
reliable mechanical retention and long-term durability over 1500
mating cycles. The housing is molded without gate marks to ensure a
clean, professional appearance suitable for premium consumer and
industrial applications.
| Product Type | USB 2.0 AM Solder-Type Connector |
| Connector Gender | Male |
| Terminal Plating | Gold Flash (G/F), ≥5U″ (per drawing) |
| Housing Color | White |
| Housing Type | Eco-enhanced, no gate marks |
| Rated Current | 1.5A Max |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥500MΩ @ 500V DC |
| Withstanding Voltage | 500V AC / 1 minute |
| Mating Force | 35N Max |
| Un-mating Force | 10N Min |
| Durability | 1500 mating cycles |
| Salt Spray Test | 24 hours Min |
| Operating Temperature | -20°C ~ +85°C |
| Application | Wire soldering / cable assembly |
| Compliance | RoHS / Eco-enhanced molding |
Applications
Consumer electronics cable manufacturing
Data transmission cables
Power supply extension cables
Automotive diagnostic cables
Industrial control wiring
Custom cable assemblies requiring stable solder joints
Precautions
Ensure proper solder temperature to avoid terminal damage.
Avoid excessive mechanical stress on the solder cups during
assembly.
Recommended for use with compliant RoHS cable materials.
Maintain clean contact surfaces to achieve optimal signal
transmission.
