Our SAS 3.0/4.0 series connectors deliver exceptional data transfer
speeds of up to 24 Gb/s, ensuring stable and efficient transmission
for enterprise storage and server systems. Designed with high
reliability and hot-plug capability, each connector undergoes
strict quality control and automated precision manufacturing. With
flexible customization options and strong R&D support, our SAS
connectors are ideal for both board-to-board and wire-to-board
applications in enterprise storage systems, servers, and data
centers requiring consistent, high-speed performance. ShuangYi
Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the
best offer and detailed quotation!

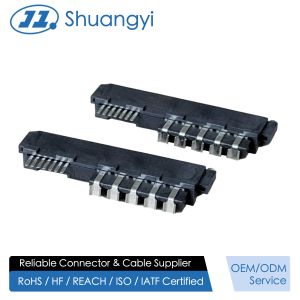

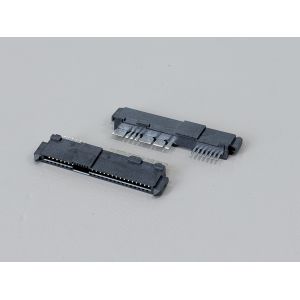

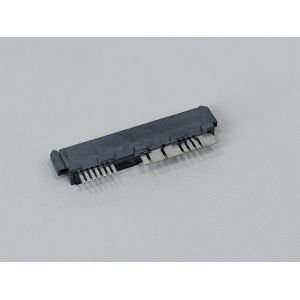

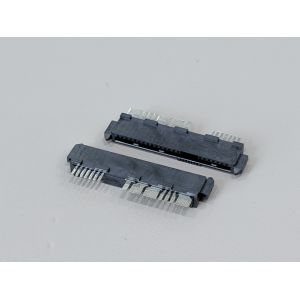

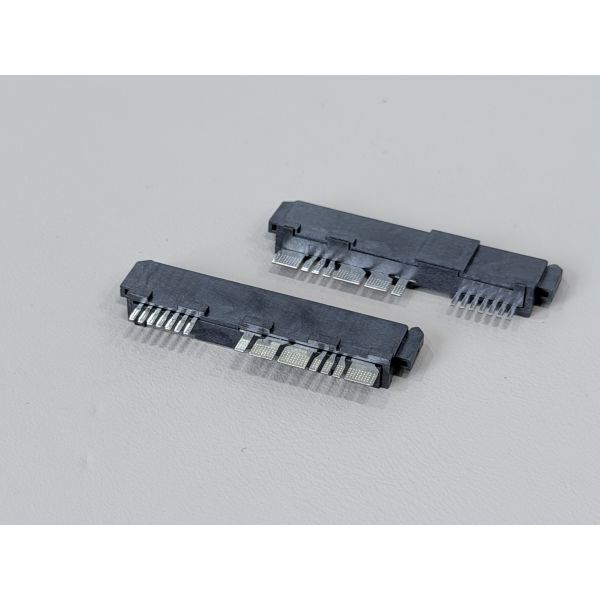

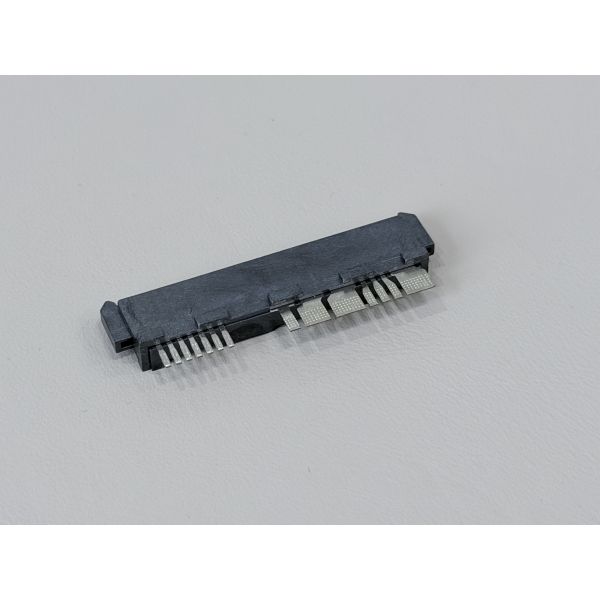

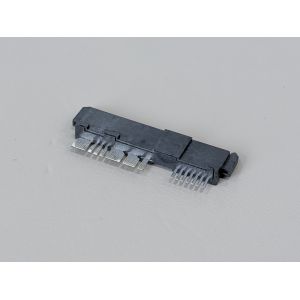

The SAS 29P Solder-Type Female Cable Connector 180° with Positioning
Peg & Top Boss is a robust electronic signal and power connector designed for SAS-based server, storage and industrial
applications. With a 1.27mm pitch housing and 29 female pins, it enables compact, high-density wire and cable assemblies between backplanes, test fixtures or dummy ports and
controller boards.
Each terminal is made from phosphor bronze C5191-H (t = 0.25mm) and receives a three-layer plating system:
50u" minimum nickel over the entire terminal for corrosion resistance,
15u" minimum gold on the contact area to ensure low contact resistance and stable high-speed electrical
signal performance,
80u" minimum tin on the solder tail for strong solder joints to copper wires in cable harnesses.
The glass-filled LCP housing (black, UL94-V0, Halogen-Free) offers excellent mechanical strength, dimensional stability and
heat resistance, making the connector suitable for demanding
electrical and electronic equipment.
Electrically, the connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC/minute. Mechanical specifications define mating and unmating forces for both backplane and cable, and single pin retention ≥0.8kgf, ensuring that terminals remain secure even under vibration and
handling.
The positioning peg and top boss help align the connector accurately in jigs, housings or
over-molded shells, simplifying assembly and improving reliability
for customized wire, cable and PCB interconnect solutions.
| Product Type | SAS “dummy” 29P female cable connector, 180° straight, wire solder
type, with positioning peg and top boss |
| Interface Series | SAS series |
| Number of Positions | 29 pins (29P) |
| Pitch of Housing | 1.27mm (C: 1.27 pitch of housing) |
| Gender | Female connector |
| Links Way of Terminal with Wire | S43: solder way of 180° terminal with wire (soldered cable type) |
| Plating Specification Code | A5: Au 15u" plated |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Withstand Voltage | 500VAC / minute |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Terminal Plating – Base | Ni 50u" min plated over terminal |
| Contact Area Plating | Au 15u" min plated on contact area |
| Solder & Crimp Area Plating | Sn 80u" min plated on solder & crimp area |
| Mating Force | Backplane ≤ 25N max; Cable ≤ 50N max |
| Unmating Force | Backplane ≥ 5N min; Cable ≥ 20N min |
| Single Pin Retention Force | ≥ 0.8kgf per pin |
| Durability Test – Frequency | 200 cycles/hour, 25 cycles |
| Durability After Test | Contact resistance per pin ≤ 30mΩ, no distortion, split, curliness
or cracks |
| Salt Spray Test | Gold-plated area ≥ 48 hours (salt spray) |
| Housing Material | LCP G/F, Black, UL94-V0, Halogen-Free (HF) |
| Terminal Material | Phosphor Bronze C5191-H, t = 0.25mm (TS-C07F-S04, TS-C15F-S86) |
| Environmental Compliance | RoHS 2.0 + HF |
| Special Features | Positioning peg for accurate location; straight body with top boss
for mechanical guidance and locking; wire solder tail for cable
assembly |
Key Features
- SAS 29P, 1.27mm pitch solder-type female connector designed for high-density wire and cable applications
- Ni 50u" + Au 15u" contact plating provides low contact resistance, excellent conductivity and
corrosion resistance
- Sn 80u" min on solder area ensures reliable electrical and mechanical bonding with copper
wires
- Phosphor bronze C5191-H terminals offer stable spring force and durability under vibration and
repeated insertion/removal
- LCP G/F black UL94-V0, HF housing delivers high mechanical strength and heat resistance for harsh
server, automotive and industrial environments
- Defined mating/unmating forces for both backplane and cable help protect terminals and maintain
consistent connection quality
- Single pin retention ≥0.8kgf prevents terminal back-out during assembly, cable pulling or
long-term use
- Positioning peg and top boss provide precise mechanical guidance and locking, ideal for
over-molding and custom connector shells
- Fully RoHS 2.0 + Halogen-Free compliant, suitable for global electrical and electronic markets
⚙️ Applications
- This SAS 29P IDC female connector is suitable for a wide range of wire / cable / electrical uses:
- Server & Data Center Wiring Harness
- SAS dummy or alignment connectors in backplane harnesses
- Internal server cable assemblies between controller boards and
mechanical interfaces
- Storage & Communication Equipment
- Cable harnesses in disk arrays, JBOD, NAS and test fixtures
- Communication equipment where SAS-style connectors are used for
signal or power routing
- Automotive & Industrial Electronics
- Industrial PCs, data logging systems and test jigs requiring robust
SAS-style cable connectors
- Vehicle and equipment harnesses where high-density, reliable electrical connector performance is required
- Custom Wire & Cable Assemblies
- OEM / ODM wire cable electronic connector solutions for PCB-to-cable or cable-to-cable transmission
- Mechanical dummy or keying connectors in fixtures, test boards and
simulation systems
⚠️ Notes
- Select appropriate wire gauge and insulation according to the 1.5A @ 40VAC rating and application requirements
(signal + power).
- Use the recommended soldering process for the tin-plated tails; ensure sufficient solder wetting for low
resistance and high pull-out strength.
- Keep the gold-plated contact area clean; avoid touching terminals with bare fingers to prevent
contamination and oxidation.
- When assembling, make full use of the positioning peg and top boss to align the connector correctly in fixtures or housings, reducing
stress on the terminals and PCB.
- Do not exceed the specified mating/unmating forces for backplane and cable to maintain terminal elasticity and
connector lifetime.
- After durability testing (up to 25 cycles at 200 cycles/hour),
verify that contact resistance per pin remains ≤30mΩ and that no distortion, cracks or deformation appear.
- Store connectors in dry, anti-static packaging, and handle them in ESD-protected areas when integrating into
sensitive electronic systems.
- Operate only within the specified temperature range (–20°C to +85°C) and electrical ratings to guarantee long-term reliability.
