    400A High Current Carbon Brush Slip Ring with Electric Power for Marine

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-04400-0560-42S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal,Western Union
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    400A High Current Carbon Brush Slip Ring with Electric Power for Marine

    400A High Current Carbon Brush Slip Ring with Electric Power for Marine

    BHCN-C-04400-0560-42S is CENO carbon brush slip ring with electric power named central collector and also called High current slip ring, large power slip ring, carbon brush slip ring, marine slip ring, can transmit high current 100A or higher, often apply to the marine machinery, engineering machine, Harbour machinery, such as marine crane, offshore platform crane, cable drum, Thruster or boat’s propeller and drilling plat form etc. For more information please contact us.

    Features

    • Imported copper graphite, stable performance,less dust & long life
    • Excellent weather resistance, High electrical safety,Special design and easy maintenance


    Applications

    • Marine crane
    • Offshore platform cran
    • Seaport machinery
    • Engineering machinery
    • Oil drilling platform


    Optional

    • Circuit, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature




    Specification

    BHCN-C-04400-0560-42S Specification
    Working temperature-10°C~+45°C
    Working humidity90 %RH
    IP protection gradeIP54
    Operating speed0~5rpm
    Rating Voltage0 ~ 400 VAC/VDC
    Current & Circuits3 * 400A; 1 * PE; 3 * 60A; 2 * 60A
    Dielectric strength≥1500VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance wave≤ 10mΩ
    Contact materialCopper carbon
    Connect typeScrew connect terminal
    MaintenanceOn schedule
    Rating Voltage0 ~ 220 VAC/VDC
    Current & Circuits6 * 16A; 36 * 10A
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥300MΩ@500VDC
    Connect materialPrecious metal
    Connect typeConnect wire box
    MaintenanceFree
    Rotation methodCircuits rotating, brush stable
    OtherHeater and temperature controller

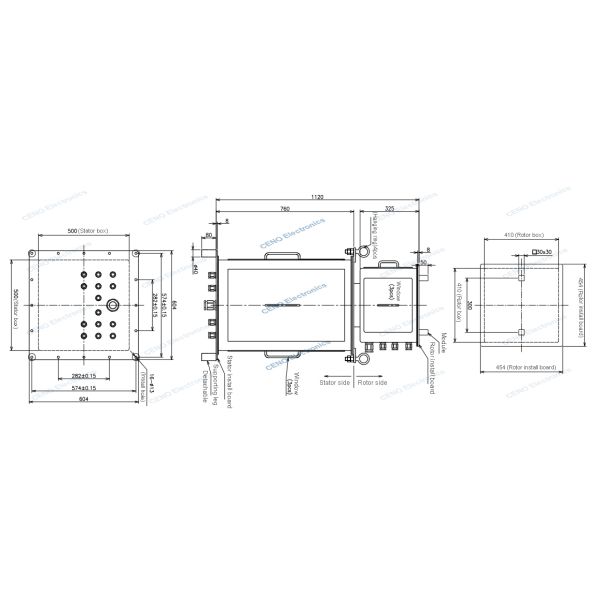

    Outline Drawing







    More information about ceno marine carbon brush slip rings

    CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
    Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
    Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
    In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.





    Application pictures




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
