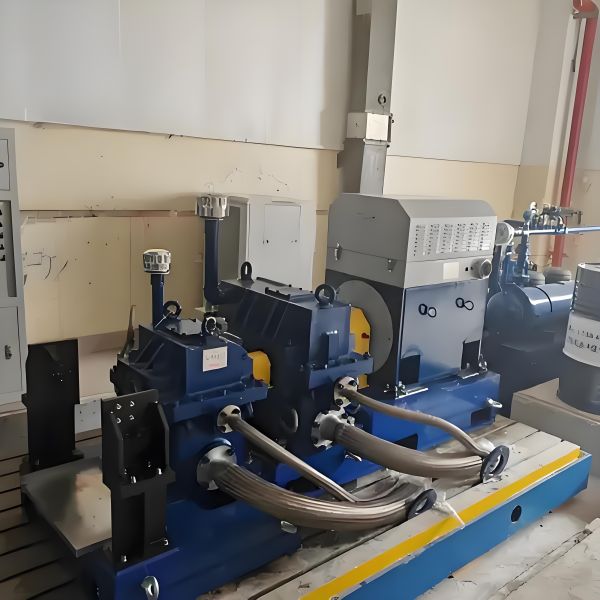

3. SSCD132-1500/4500 132kW Gearbox Test Bench Core Advantages
1) High-precision testing: Torque measurement accuracy of 0.2%FS, speed control accuracy of
±1rpm, ensuring accurate and reliable test data.
2) High-efficiency data processing: The XLP-1000 measurement and control system is equipped with a
high-performance processor, enabling rapid data processing and
real-time monitoring.
3) Comprehensive parameter monitoring: The data acquisition system integrates multiple sensors to
comprehensively monitor parameters such as temperature, pressure,
and flow rate.
4) Energy saving and environmental protection: The electric dynamometer converts mechanical energy into
electrical energy and feeds it back to the power grid, achieving
energy-saving testing.
5) Flexible configuration: Offers a variety of optional components to meet the needs of
different testing scenarios.
4. SSCD132-1500/4500 132kW Gearbox Test Bench Application Areas
1) Industrial gearboxes: used for transmission efficiency, temperature rise, and life
testing of machine tools, metallurgical machinery, mining
machinery, and rubber and plastic machinery to ensure processing
stability and wear resistance.
2) Wind turbine gearboxes: Support vibration characteristics, dynamic performance and
reliability testing of megawatt-level wind turbine gearboxes,
suitable for remote online monitoring and fault diagnosis.
3) Engineering machinery gearboxes: covering load simulation and durability testing of equipment such
as crushers and conveyors, and verification of operation in harsh
environments.
4) Automotive and rail transportation: Applications include performance optimization of transmissions,
electric vehicle gearboxes, and high-speed rail traction systems,
improving transmission efficiency and driving smoothness.
5) Marine and Energy Equipment: Used for speed matching testing of marine gearboxes, and for
verifying the corrosion resistance and lubrication performance of
hydroelectric gearboxes.
5. SSCD132-1500/4500 132kW Gearbox Test Bench Reference Standards
• JB/T 10634-2023 "Electric Dynamometer": A core specification covering the technical requirements and
inspection rules for dynamometers, with a focus on torque
measurement accuracy (e.g., ±0.2%FS) and speed control accuracy
(e.g., ±1rpm).
• ISO 6336 and AGMA 2001: Internationally recognized standards for calculating gear
transmission efficiency, ensuring the accuracy of control and
analysis software models.
• QC/T 533-1999 "Test Methods for Automotive Drive Axles on Bench": Provides reference methods for static torsion testing of
assemblies, gear fatigue testing, etc., and is applicable to torque
characteristic testing of electric drive axles.
• Military standards (such as MIL-STD-810G): used to simulate extreme ambient temperatures (-40℃~150℃) and
impact loads to reproduce gearbox performance under actual working
conditions.
6. Gearbox Test Bench Model List
| Model | Power (kW) | Torque (Nm) | Rated Speed (rpm) | Max Speed (rpm) | Torque Measurement Accuracy |
| SSCD15-1000/4500 | 15 | 143 | 1000 | 4000 | 0.2%FS |
| SSCD30-1000/4500 | 30 | 286 | 1000 | 4000 | 0.2%FS |
| SSCD45-1000/4000 | 45 | 430 | 1000 | 4000 | 0.2%FS |
| SSCD60-1000/4000 | 60 | 573 | 1000 | 4000 | 0.2%FS |
| SSCD90-1000/3500 | 90 | 859 | 1000 | 3500 | 0.2%FS |
| SSCD110-1000/3500 | 110 | 1050 | 1000 | 3500 | 0.2%FS |
| SSCD160-1000/3500 | 160 | 1528 | 1000 | 3500 | 0.2%FS |
| SSCD200-1000/3300 | 200 | 1910 | 1000 | 3300 | 0.2%FS |
| SSCD250-1000/3300 | 250 | 2387 | 1000 | 3300 | 0.2%FS |
| SSCD300-1000/3300 | 300 | 2865 | 1000 | 3300 | 0.2%FS |
| SSCD30-1500/5000 | 30 | 191 | 1500 | 5000 | 0.2%FS |
| SSCD45-1500/5000 | 45 | 286 | 1500 | 5000 | 0.2%FS |
| SSCD60-1500/5000 | 60 | 382 | 1500 | 5000 | 0.2%FS |
| SSCD90-1500/5000 | 90 | 573 | 1500 | 5000 | 0.2%FS |
| SSCD132-1500/4500 | 132 | 840 | 1500 | 4500 | 0.2%FS |
| SSCD160-1500/4500 | 160 | 1019 | 1500 | 4500 | 0.2%FS |
| SSCD200-1500/4000 | 200 | 1273 | 1500 | 4000 | 0.2%FS |
| SSCD250-1500/4000 | 250 | 1592 | 1500 | 4000 | 0.2%FS |
| SSCD300-1500/3800 | 300 | 1910 | 1500 | 3800 | 0.2%FS |
| SSCD400-1500/3800 | 400 | 2546 | 1500 | 3800 | 0.2%FS |
| SSCD500-1500/3800 | 500 | 3183 | 1500 | 3800 | 0.2%FS |
| Power, Speed Range and the Number of Acquisition Modules Can be Customized as Required. |
7. Delivery and After-sales Service
Delivery: Standard models ship in 90 days; customized models ship in 90-180
days (including international logistics and customs clearance
assistance).
After-sales service: 1-year warranty on core components (dynamometer, torque flange),
lifetime bilingual (Chinese and English) technical support
(response time ≤ 4 hours); spare parts are shipped domestically
within 24 hours and delivered internationally within 7 days; 1.5
days of free operation training provided; remote debugging
supported (computer-based, including modular solution configuration
guidance).
