Architectural wire rope mesh made from stainless steel 304, 316 and
316L
Quick details of Architectural Wire Rope Mesh:
Architectural rope mesh made from stainless steel 304, 316 and
316L. The angle is usually 60°.
Other angel also we can made according request. The rope net has a
unique style and more
strong security. The diamond hole pattern makes the mesh strong and
durable. Different opening
sizes can be customized to meet the different needs of customers.
Widely used for zoo,The rope
mesh are hand-made, there are two types.
Advantages:
- Huge strength to stand up with huge impacts.
- Excellent rust-resistance.
- Recyclable and durable.
Applications:
- Zoo wire mesh - parrot aviary, lion enclosure, leopard cage;
- Bridge balustrades, large barrier fences;
- Building decoration.
Specification of Architectural Wire Rope Mesh:
| Cable Diameter | Mesh Opening Size(W×H) |
| inch | mm | inch | mm |
| 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
Type of Architectural Wire Rope Mesh
Due to the different styles of these two rope mesh products, we
also refer to the ferrule type rope
mesh as stainless steel ferrule mesh, X-TEND Mesh. The inter-woven
type wire rope mesh is a
pure hand-woven net, which is also called as interwoven stainless
steel cable mesh, hand-woven
wire rope mesh, or knotted stainless steel cable mesh.

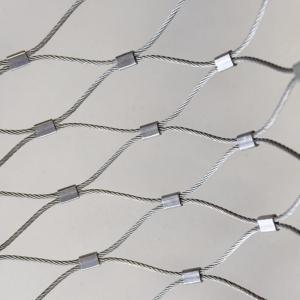

| Ferrule mesh |
 |
| knotted mesh (hand woven type ) |
 |
Application of Architectural Wire Rope Mesh:
Stainless steel rope wire mesh is commonly used in various
applications where high strength,
durability, and corrosion resistance are required. It is commonly used in
architectural applications
such as building facades, balustrades, and safety barriers. It is
also used in zoological and aquarium
zoo mesh, as well as in industrial applications such as machinery
guards and conveyor belts.
Advantage of Architectural Rope Mesh :
1. High tensile strength with light weight.
2. Safe and environmental protection, close to nature.
3. Good resistance for weather and corrosion.
4. High transparency and good invisible effect.
5. Large mesh span for huge surface installation.
6. The structure is strong and durable, with a service life of more
than 30 years
7. Various graphics and structures can be designed arbitrarily.
8. Easy to install, can be constructed on any structure.
Package of Architectural Rope Mesh :
The rope mesh without frame would packed in rolls with plastic
film, then put into wooden case
The rope mesh with frame would be fastene on pallets.
